Plotting Default Regions of Interest (ROIs) to Understand the Tracts#

This script visualizes the default Regions of Interest (ROIs) for the white matter tracts we recognize by default in pyAFQ. It loads predefined tract templates into MNI space, extracts inclusion, exclusion, start, and end ROIs from the tracts, and generates multi-panel figures showing sagittal, coronal, and axial views of these ROIs overlaid on the MNI template T1w brain.

The visualization helps understand the spatial relationships between tracts and their defining ROIs.

Import libraries, load the default tract templates

import numpy as np

import matplotlib
matplotlib.use('Agg')  # Use Agg backend for headless plotting
import matplotlib.pyplot as plt

import AFQ.data.fetch as afd
import AFQ.api.bundle_dict as abd


templates = abd.default_bd() + abd.callosal_bd()

/opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

2026-05-26 23:04:08,856	INFO util.py:154 -- Missing packages: ['ipywidgets']. Run `pip install -U ipywidgets`, then restart the notebook server for rich notebook output.

Define a function to visualize ROIs for a specific tract

def visualize_tract_rois(tract_name):
    """
    Visualize ROIs for a specific tract overlaid on the template brain.

    Parameters
    ----------
    tract_name : str
        Name of the tract

    Returns
    -------
    fig : matplotlib figure
        Figure with the visualization
    """
    # Get the template brain
    template_brain = afd.read_mni_template(
        resolution=1, mask=True, weight="T1w")
    template_data = template_brain.get_fdata()

    figures = []

    # Get the ROIs for this tract and hemisphere
    if tract_name not in templates:
        raise ValueError(f"Tract {tract_name} not found in templates.")
    bundle_info = templates[tract_name]

    # Collect all ROIs with their roles
    all_roi_images = []

    # Add include ROIs
    if 'include' in bundle_info:
        all_roi_images.extend([
            (image, "Inclusion") for image in bundle_info['include']])

    # Add exclude ROIs
    if 'exclude' in bundle_info:
        all_roi_images.extend([
            (image, "Exclusion") for image in bundle_info['exclude']])

    # Add start ROIs
    if 'start' in bundle_info:
        all_roi_images.append((bundle_info["start"], "Start"))

    # Add end ROIs
    if 'end' in bundle_info:
        all_roi_images.append((bundle_info["end"], "End"))

    if not all_roi_images:
        raise ValueError(f"No ROIs found for tract {tract_name}")

    # Create a figure
    fig, axes = plt.subplots(3,
                             len(all_roi_images),
                             figsize=(len(all_roi_images) * 4, 10))
    fig.suptitle(f"{tract_name} ROIs", fontsize=16)

    # Handle case with just one ROI
    if len(all_roi_images) == 1:
        axes = np.array([axes]).reshape(3, 1)

    # Get dimensions
    x, y, z = template_data.shape
    mid_x, mid_y, mid_z = x // 2, y // 2, z // 2

    # Function to get slice index with maximum ROI coverage
    def get_max_slice(roi_img, axis=0):
        roi_data = roi_img.get_fdata()
        if axis == 0:  # Sagittal
            sums = np.sum(roi_data, axis=(1, 2))
            return np.argmax(sums) if np.any(sums) else mid_x
        elif axis == 1:  # Coronal
            sums = np.sum(roi_data, axis=(0, 2))
            return np.argmax(sums) if np.any(sums) else mid_y
        else:  # Axial
            sums = np.sum(roi_data, axis=(0, 1))
            return np.argmax(sums) if np.any(sums) else mid_z

    # Color mapping for different ROI types
    roi_type_colors = {
        "Inclusion": 'Greens',
        "Exclusion": 'Reds',
        "Start": 'Blues',
        "End": 'Purples'
    }

    # Find best slices for each ROI individually
    for i, (roi_img, roi_type_name) in enumerate(all_roi_images):
        roi_data = roi_img.get_fdata()

        # Get best slices for this ROI
        best_x = get_max_slice(roi_img, axis=0)
        best_y = get_max_slice(roi_img, axis=1)
        best_z = get_max_slice(roi_img, axis=2)

        # Assign color based on ROI type
        roi_color = roi_type_colors[roi_type_name]

        # Plot sagittal view (first row)
        ax = axes[0, i]
        ax.imshow(np.rot90(template_data[best_x, :, :]), cmap='gray')
        mask = np.rot90(roi_data[best_x, :, :])
        ax.imshow(mask, alpha=0.5, cmap=roi_color)
        if i == 0:
            ax.set_ylabel('Sagittal')
        ax.set_title(f"{tract_name}\n({roi_type_name})")

        # Plot coronal view (second row)
        ax = axes[1, i]
        ax.imshow(np.rot90(template_data[:, best_y, :]), cmap='gray')
        mask = np.rot90(roi_data[:, best_y, :])
        ax.imshow(mask, alpha=0.5, cmap=roi_color)
        if i == 0:
            ax.set_ylabel('Coronal')

        # Plot axial view (third row)
        ax = axes[2, i]
        ax.imshow(np.rot90(template_data[:, :, best_z]), cmap='gray')
        mask = np.rot90(roi_data[:, :, best_z])
        ax.imshow(mask, alpha=0.5, cmap=roi_color)
        if i == 0:
            ax.set_ylabel('Axial')

    # Turn off axes for cleaner look
    for row in axes:
        for ax in row:
            ax.axis('off')

    plt.tight_layout()

    figures.append(fig)

    return figures

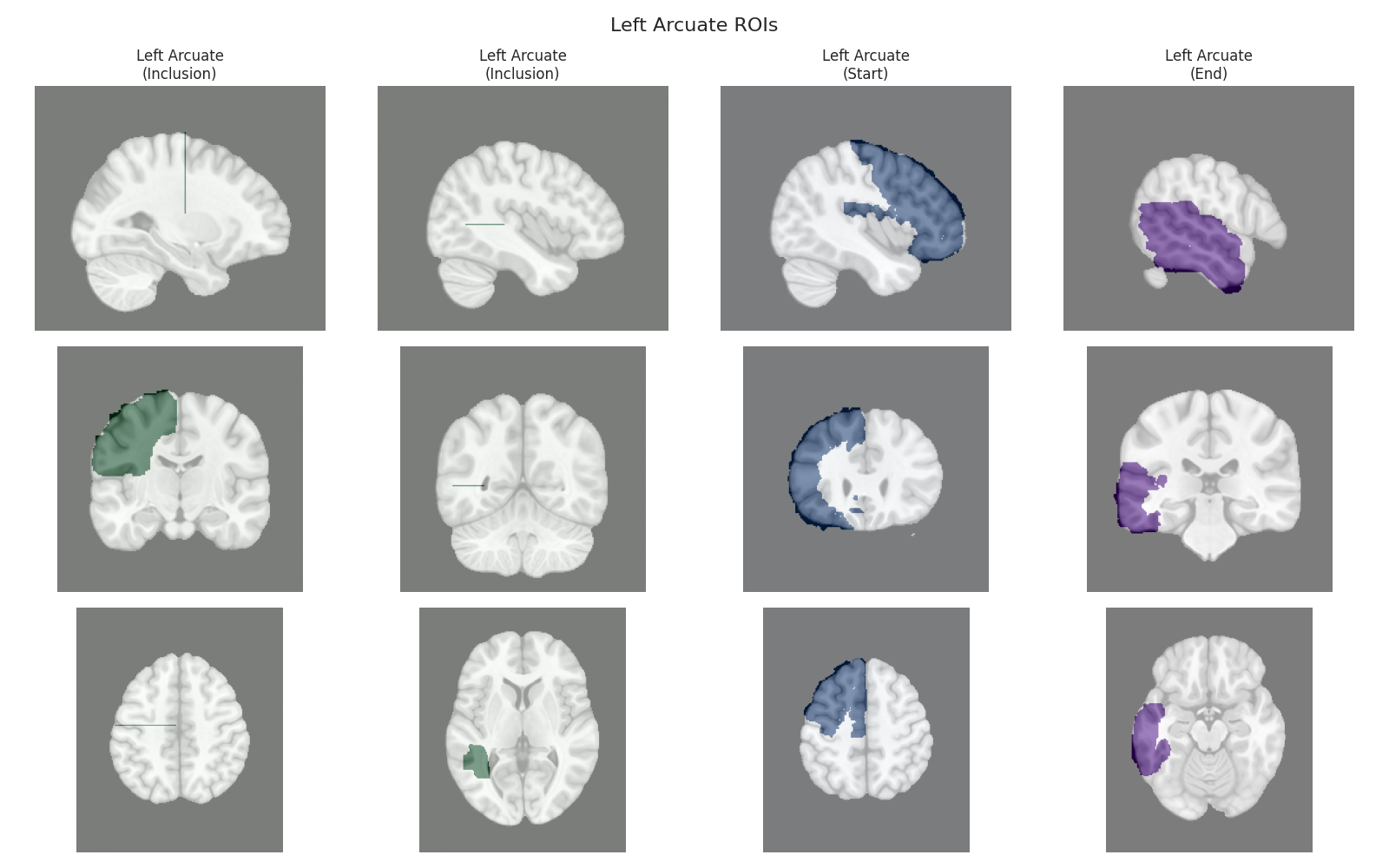

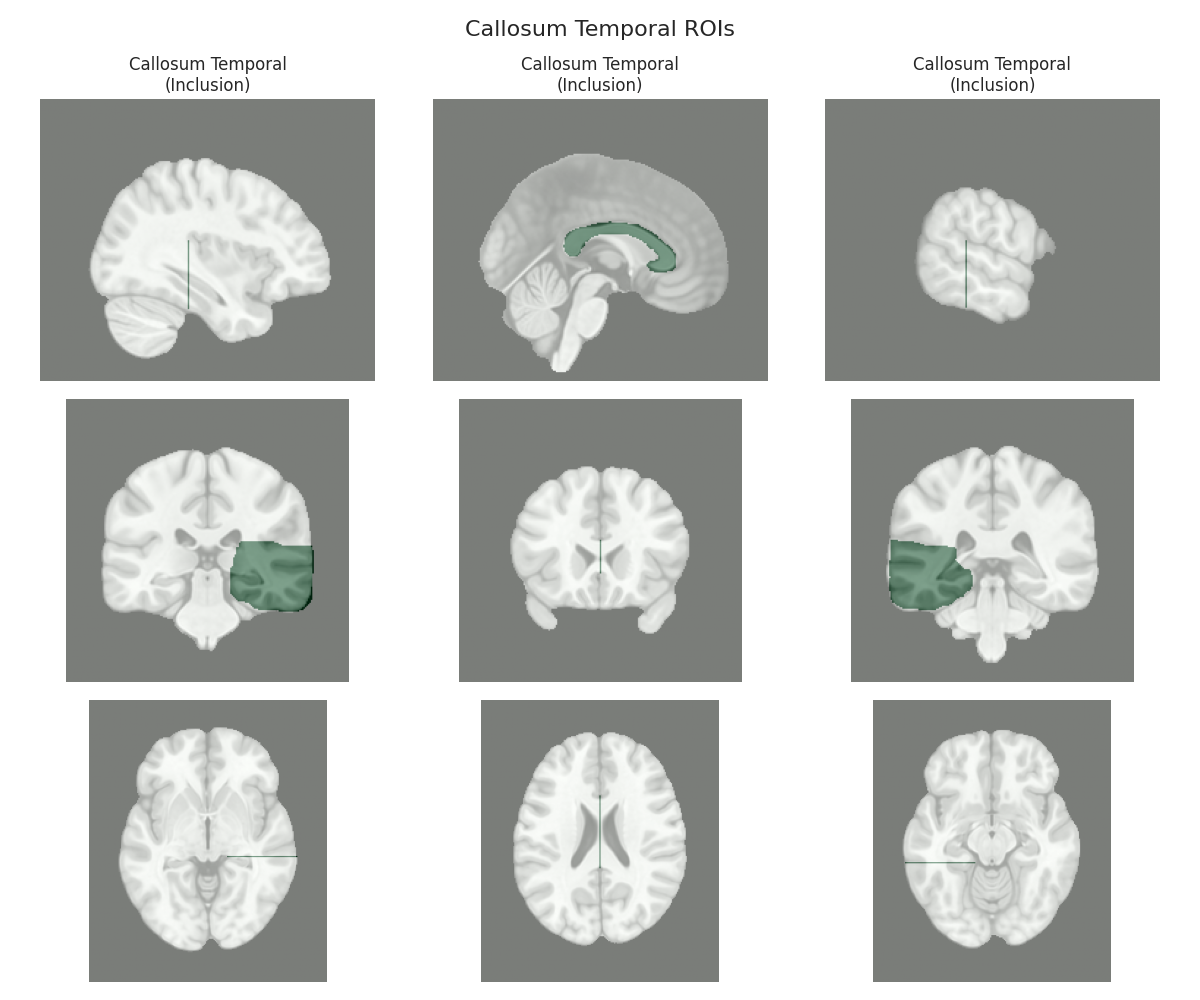

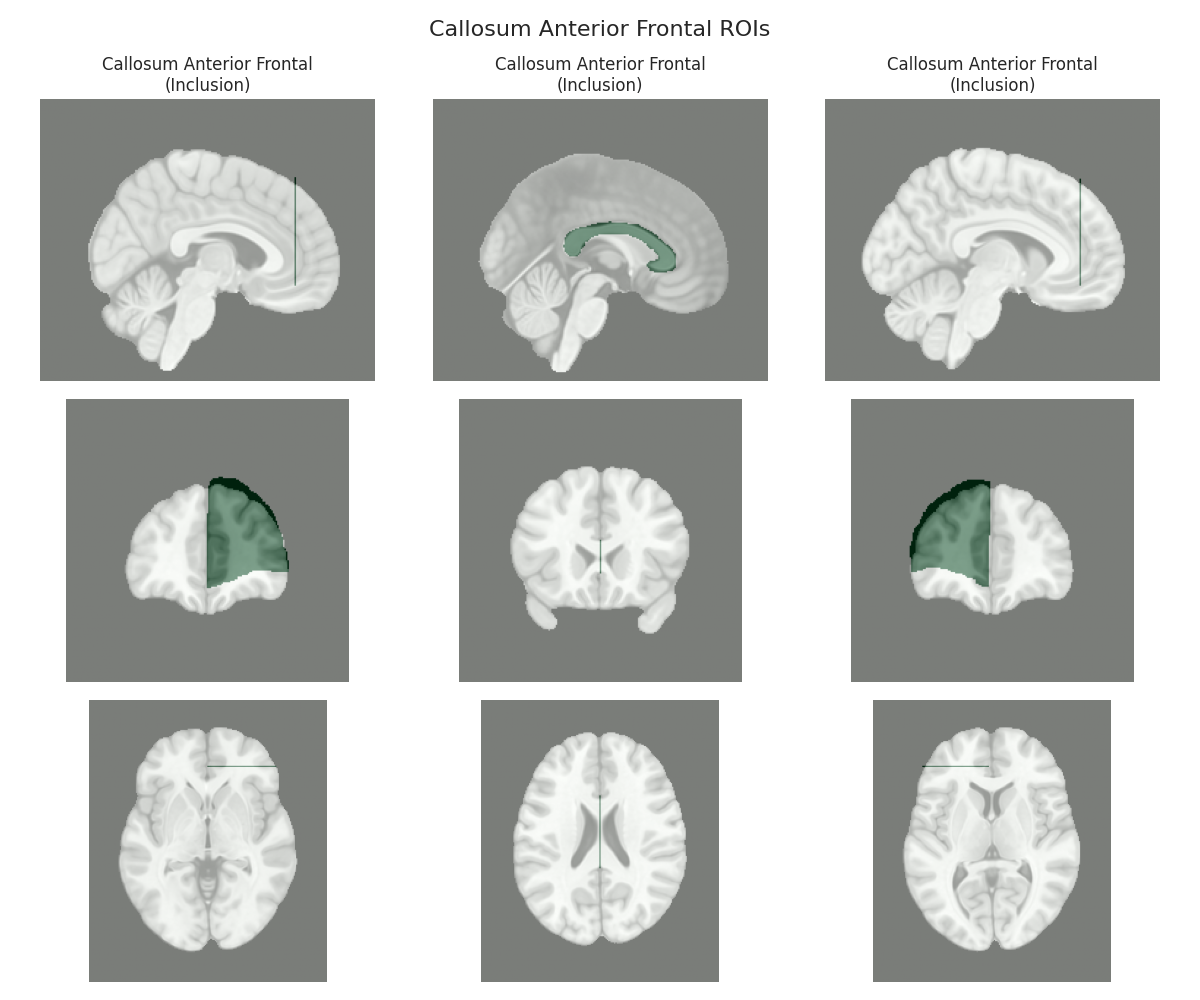

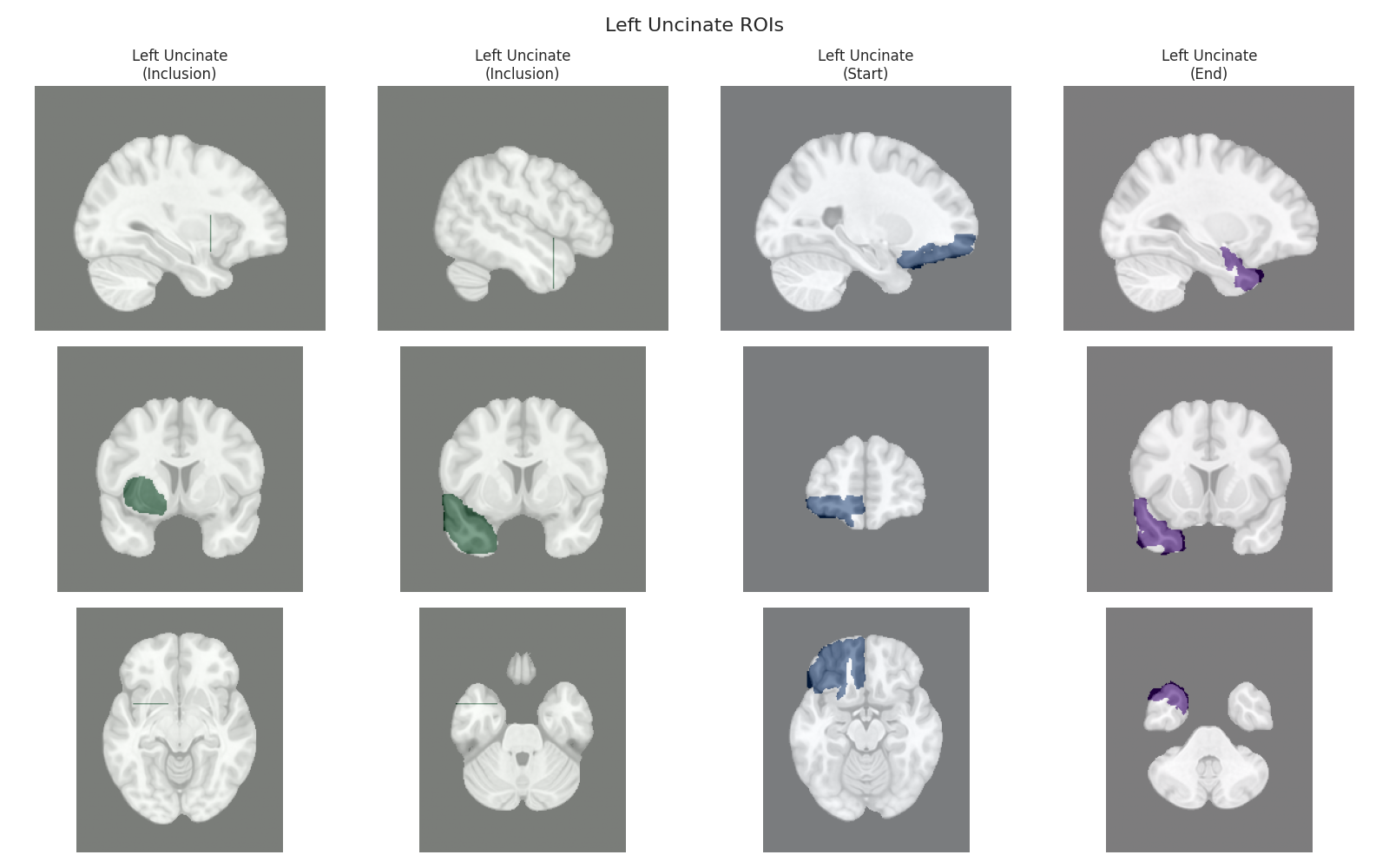

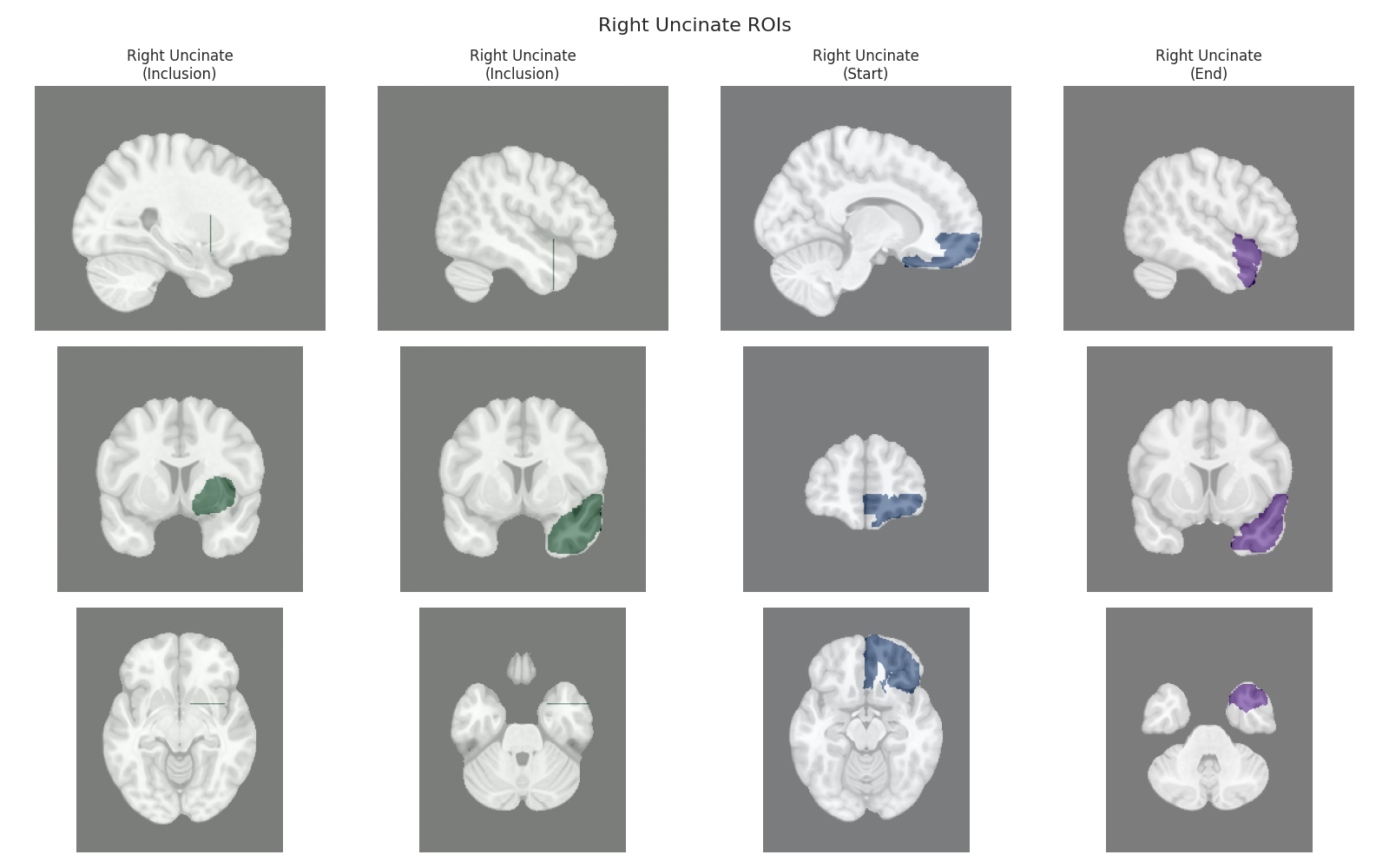

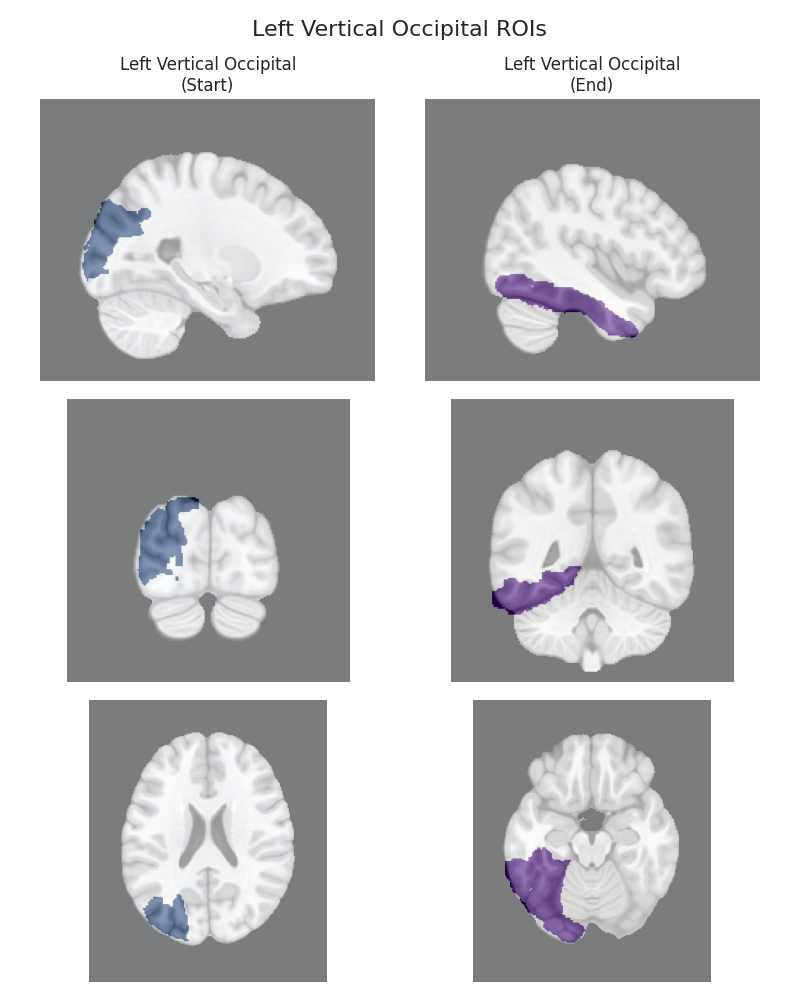

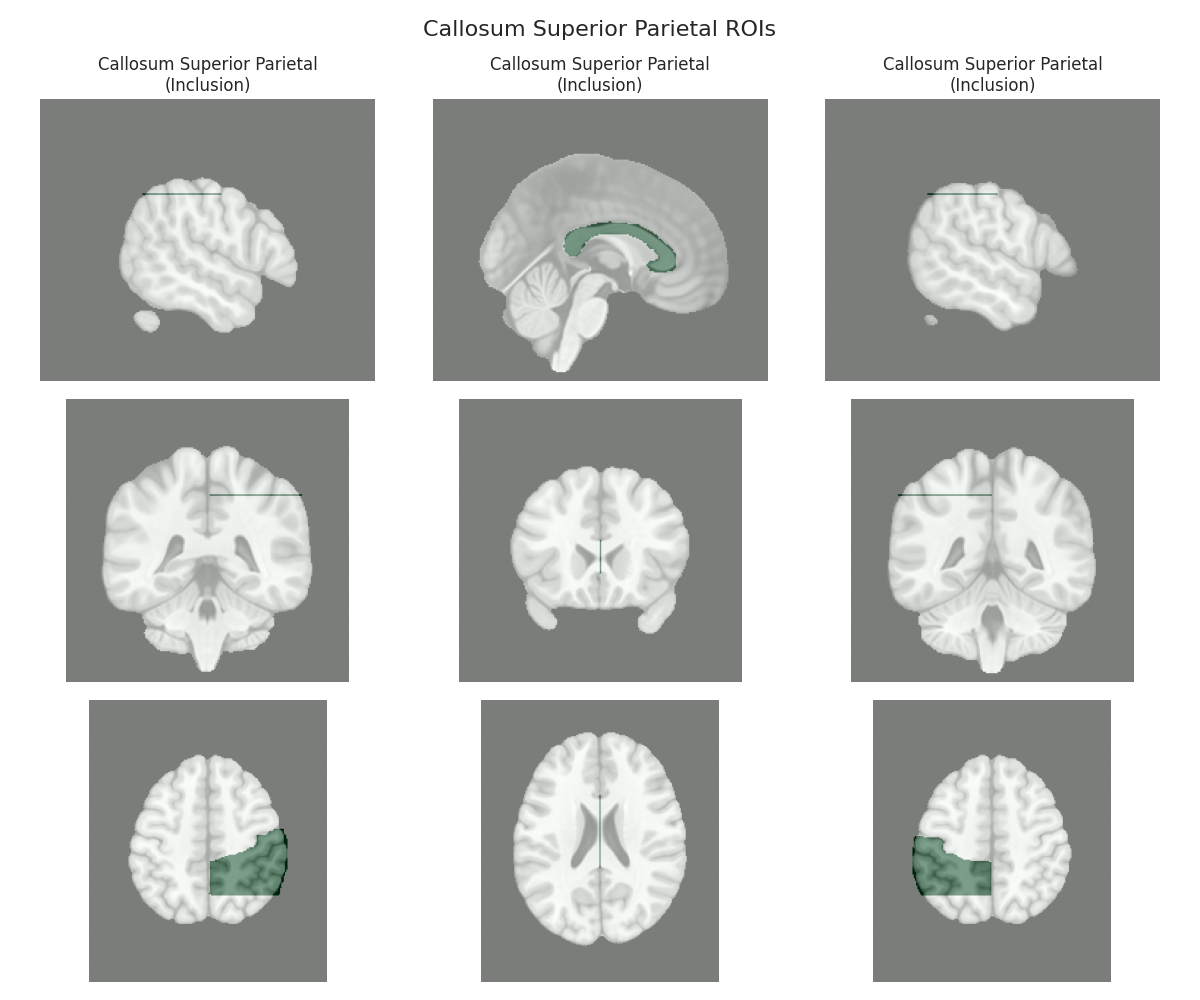

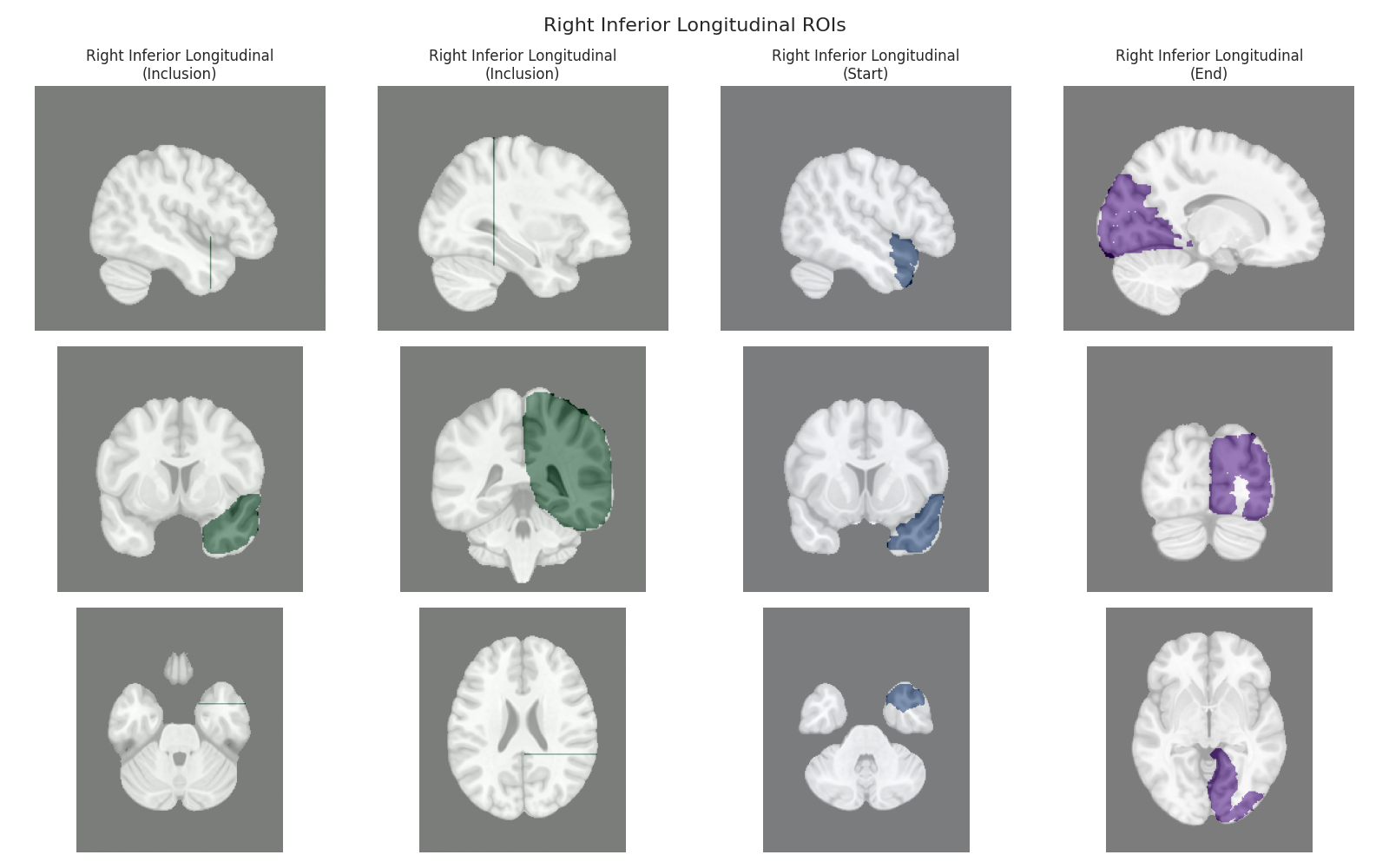

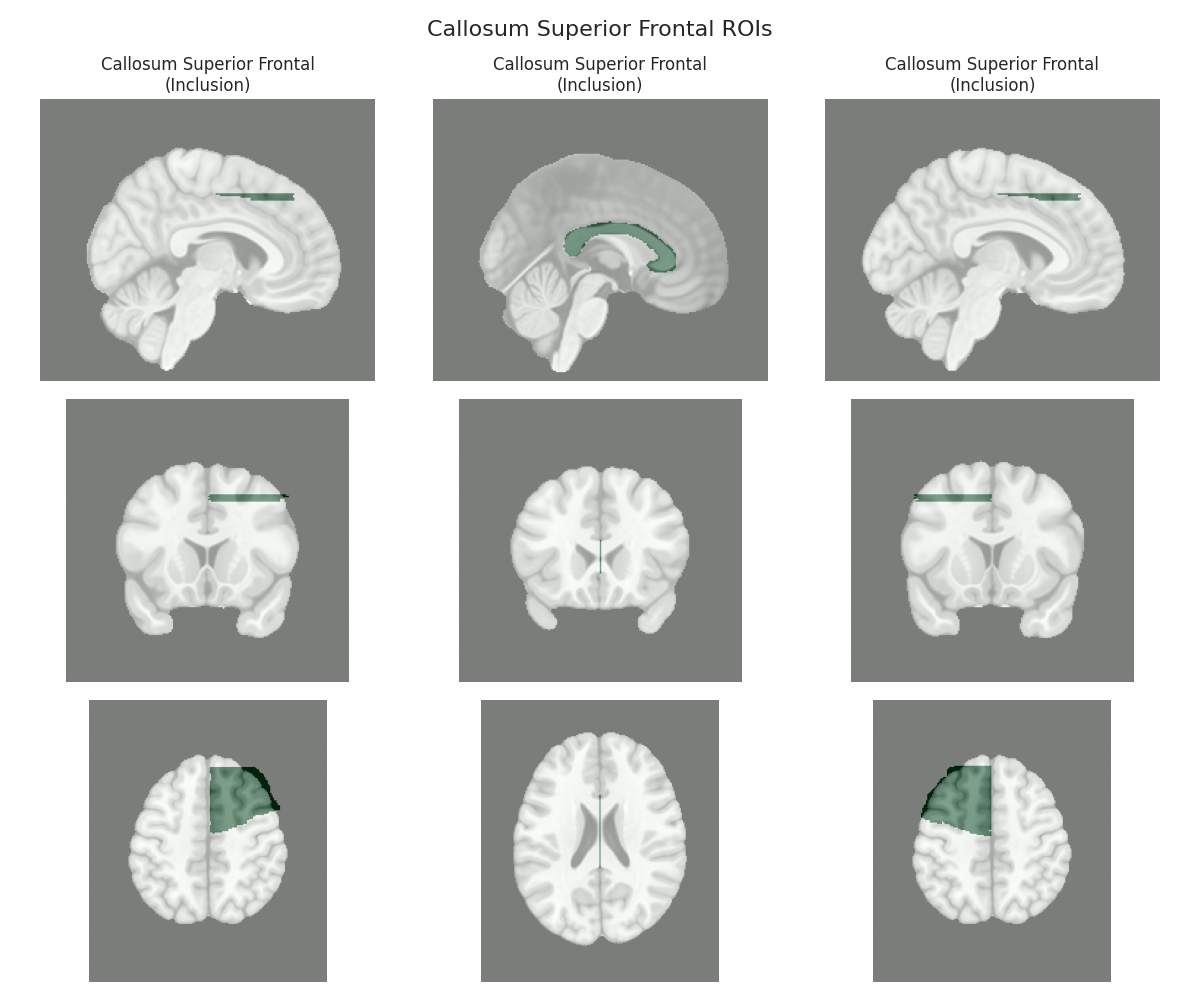

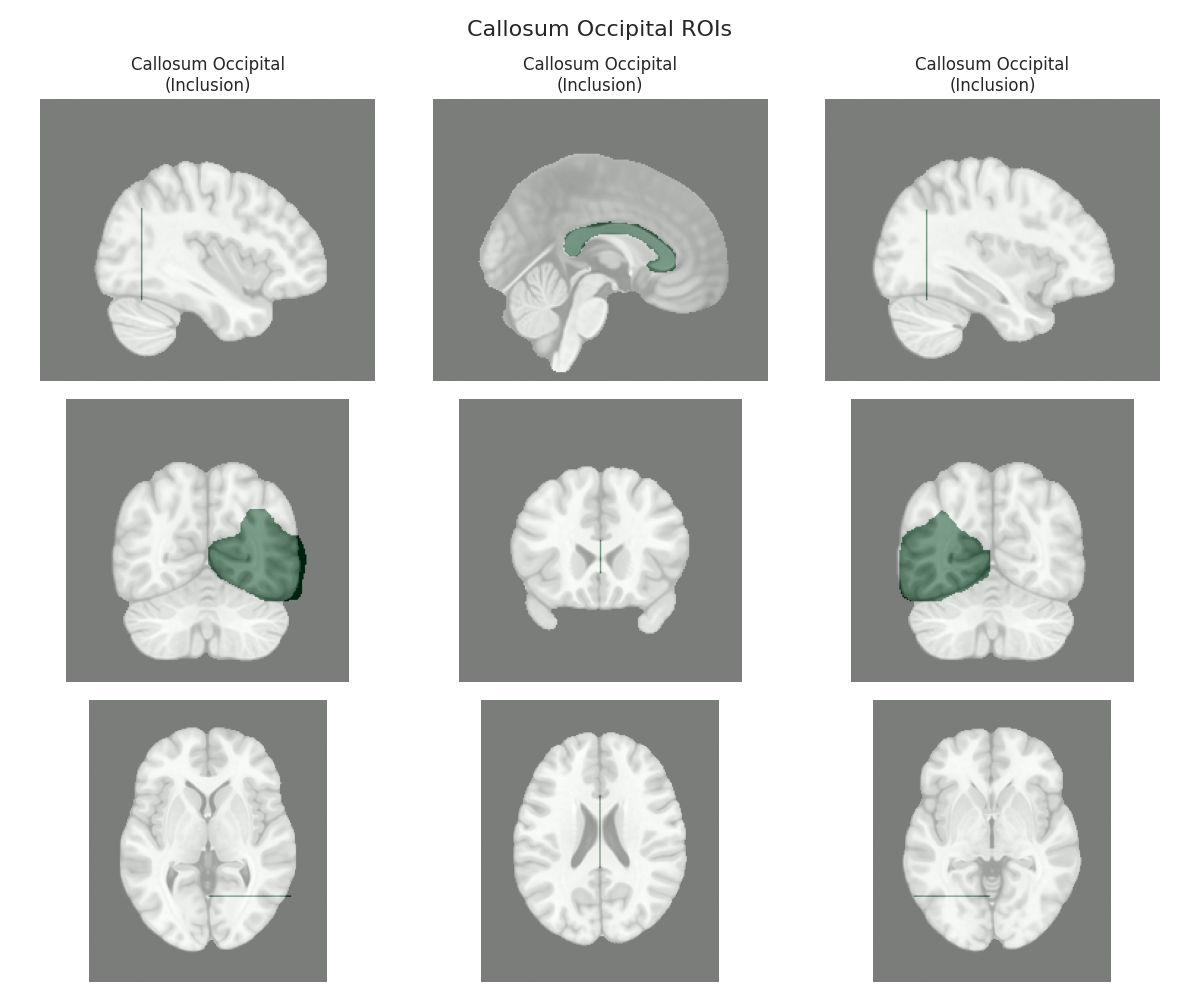

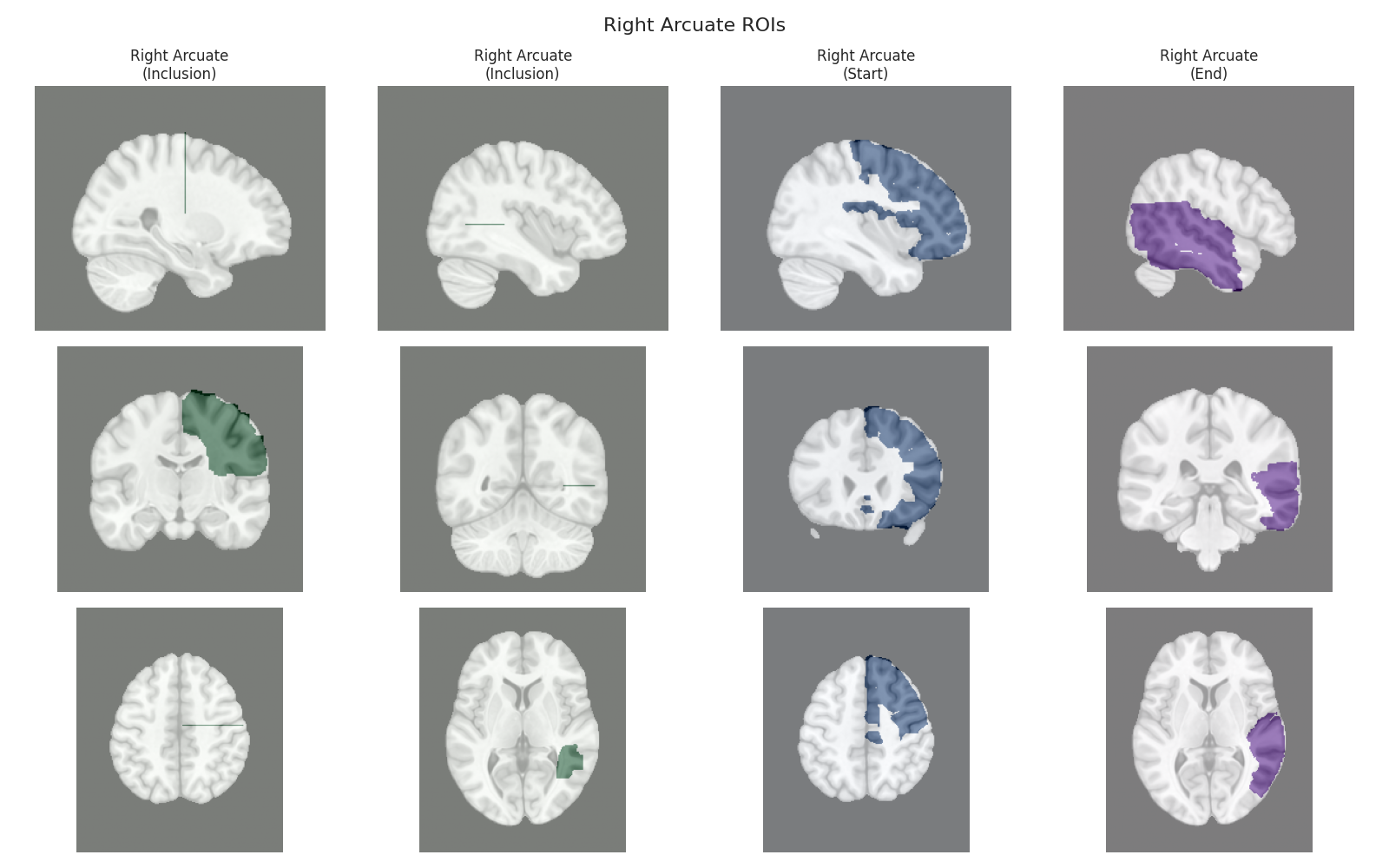

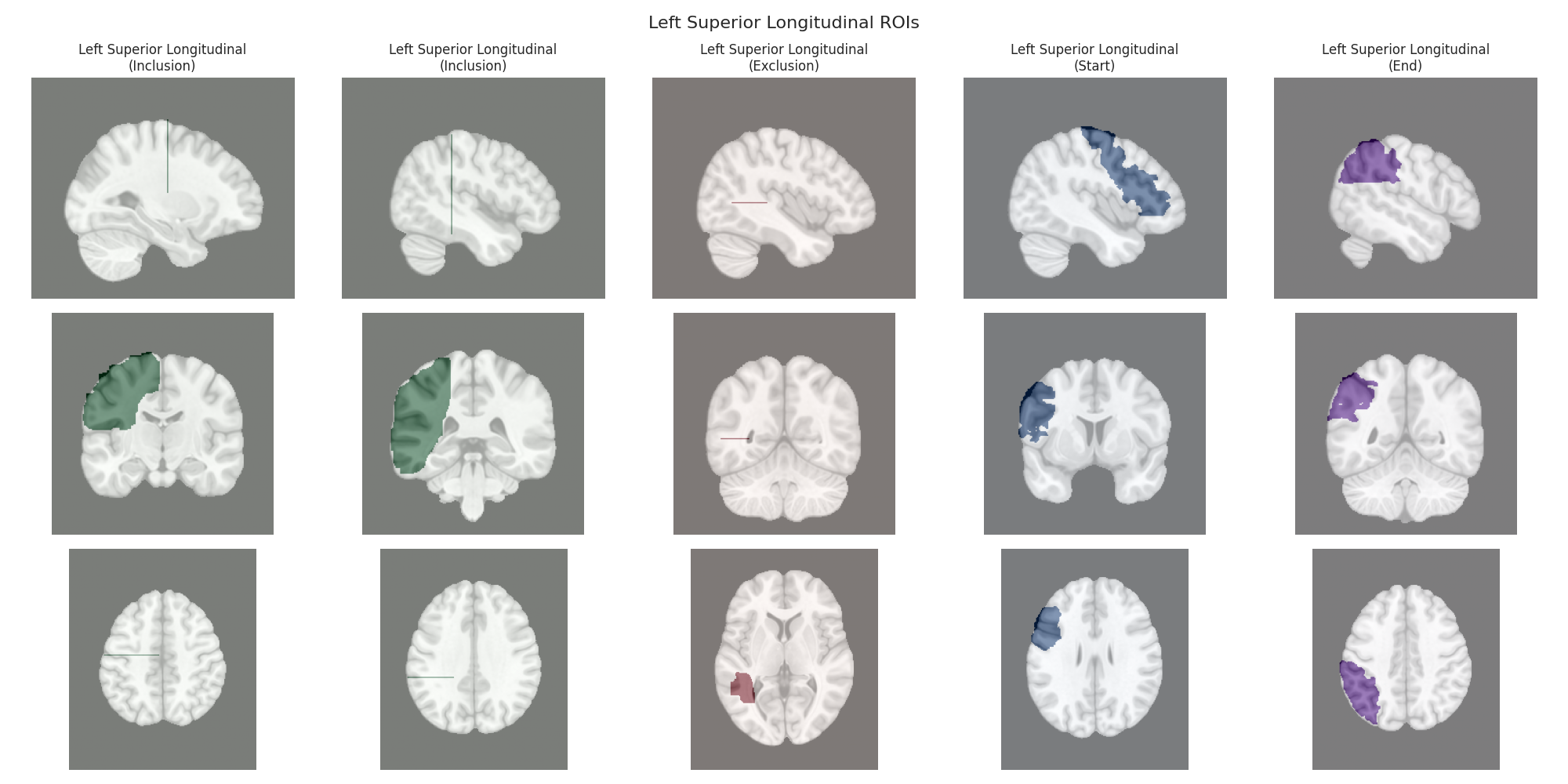

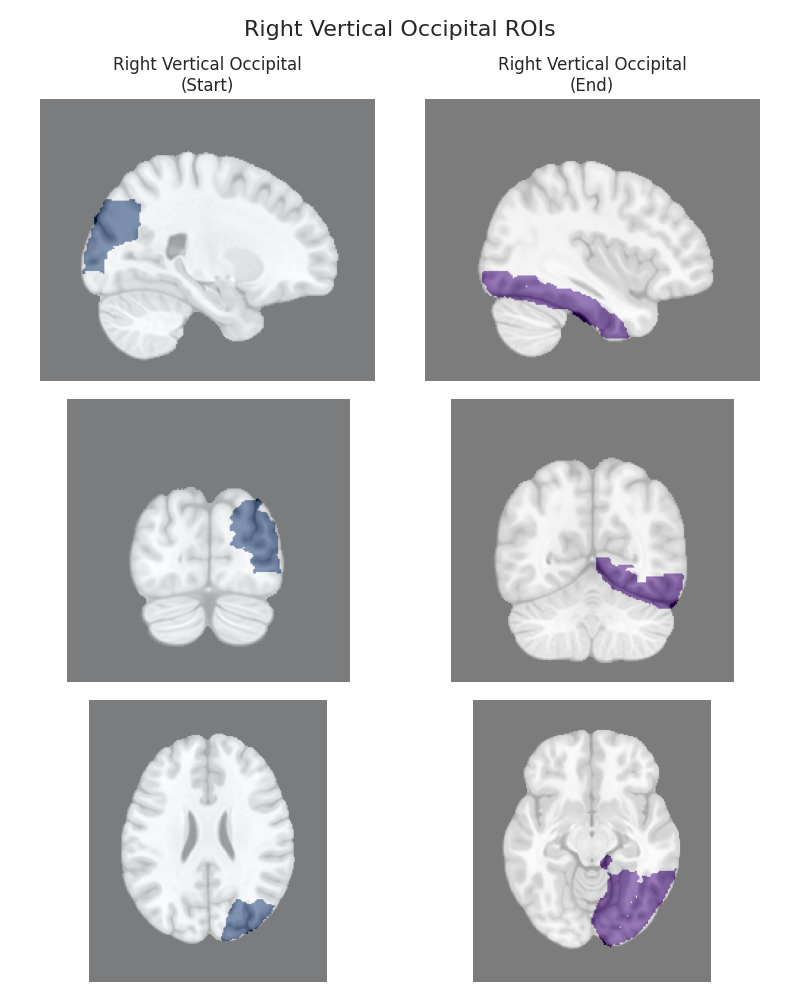

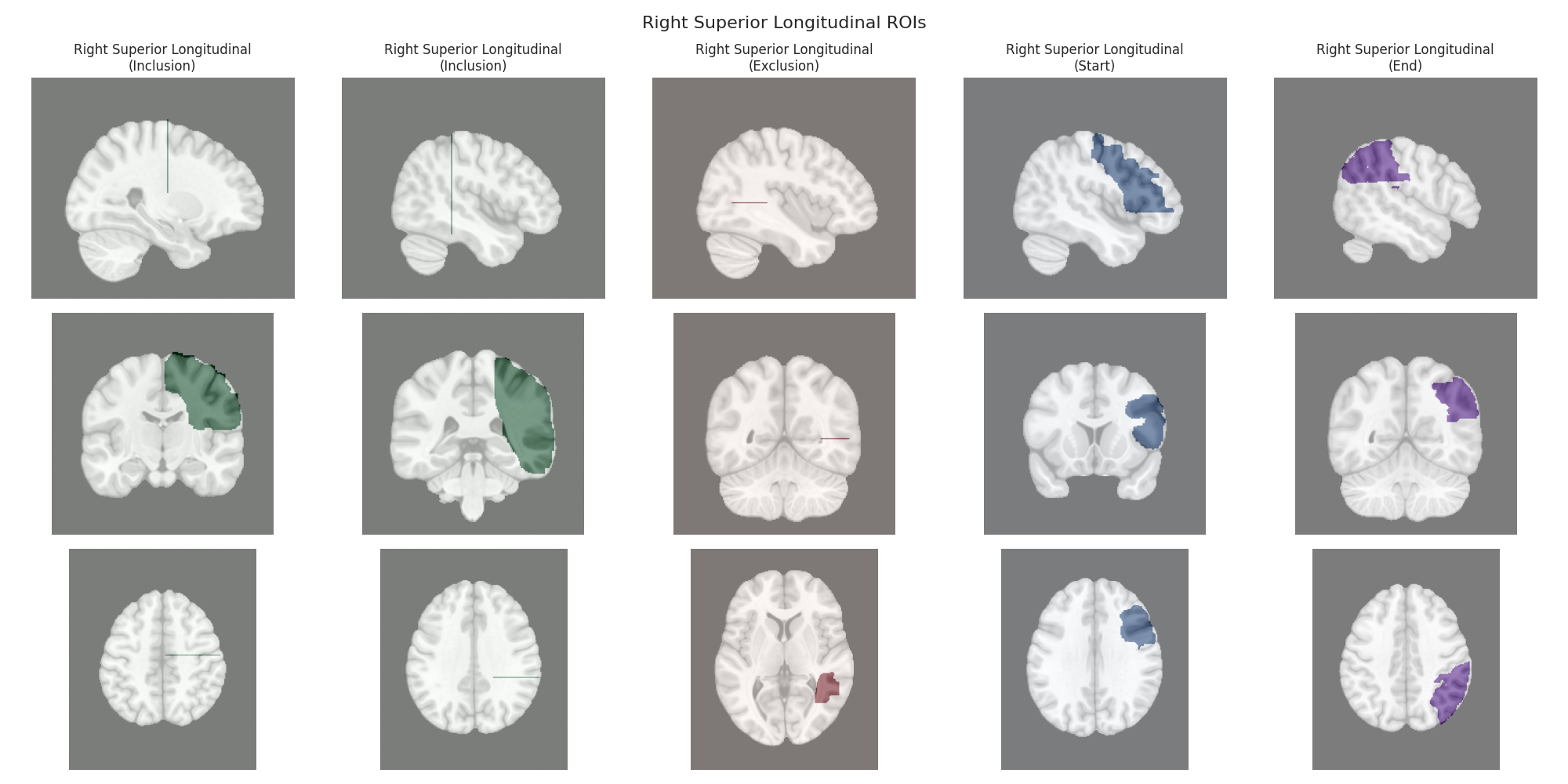

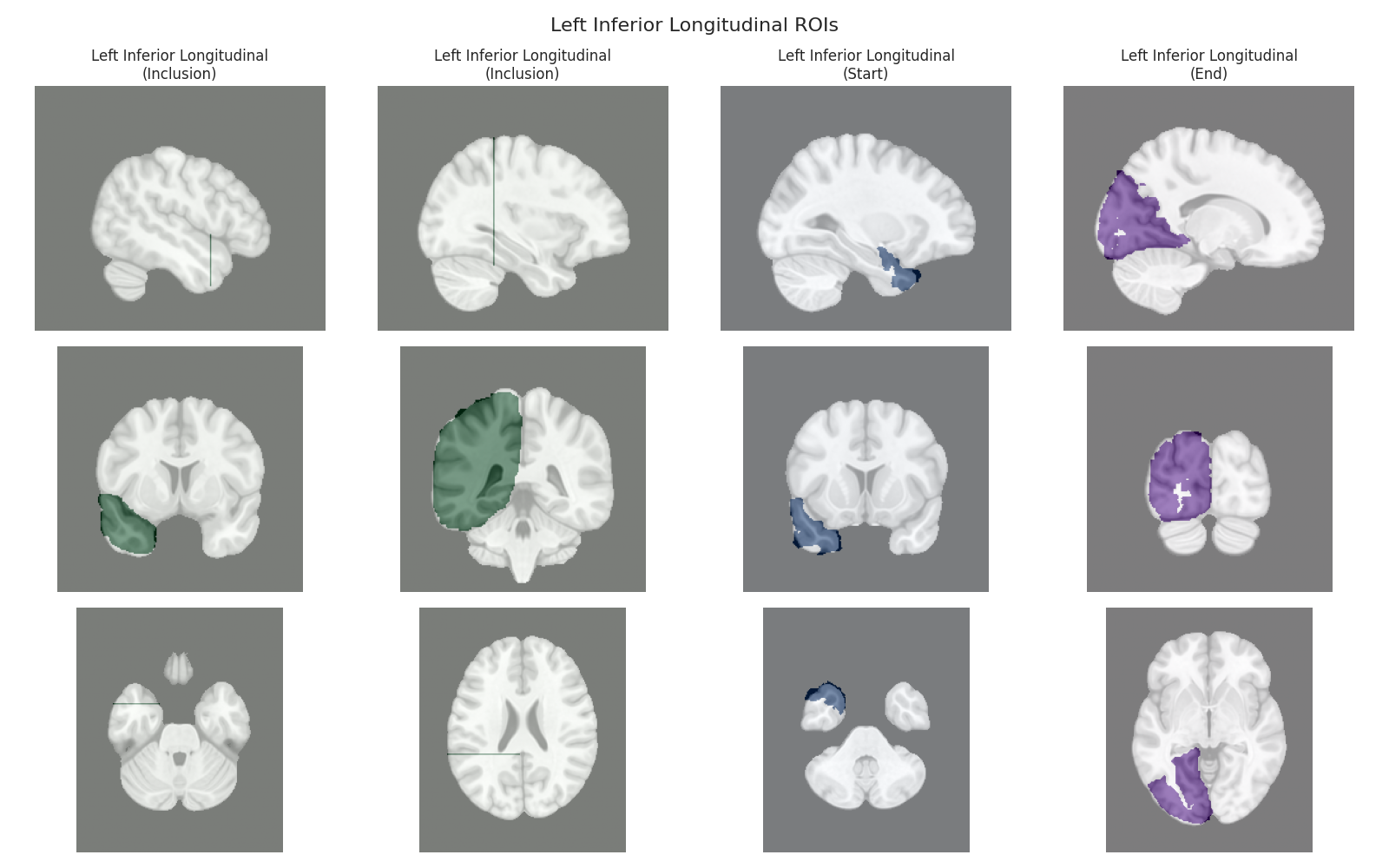

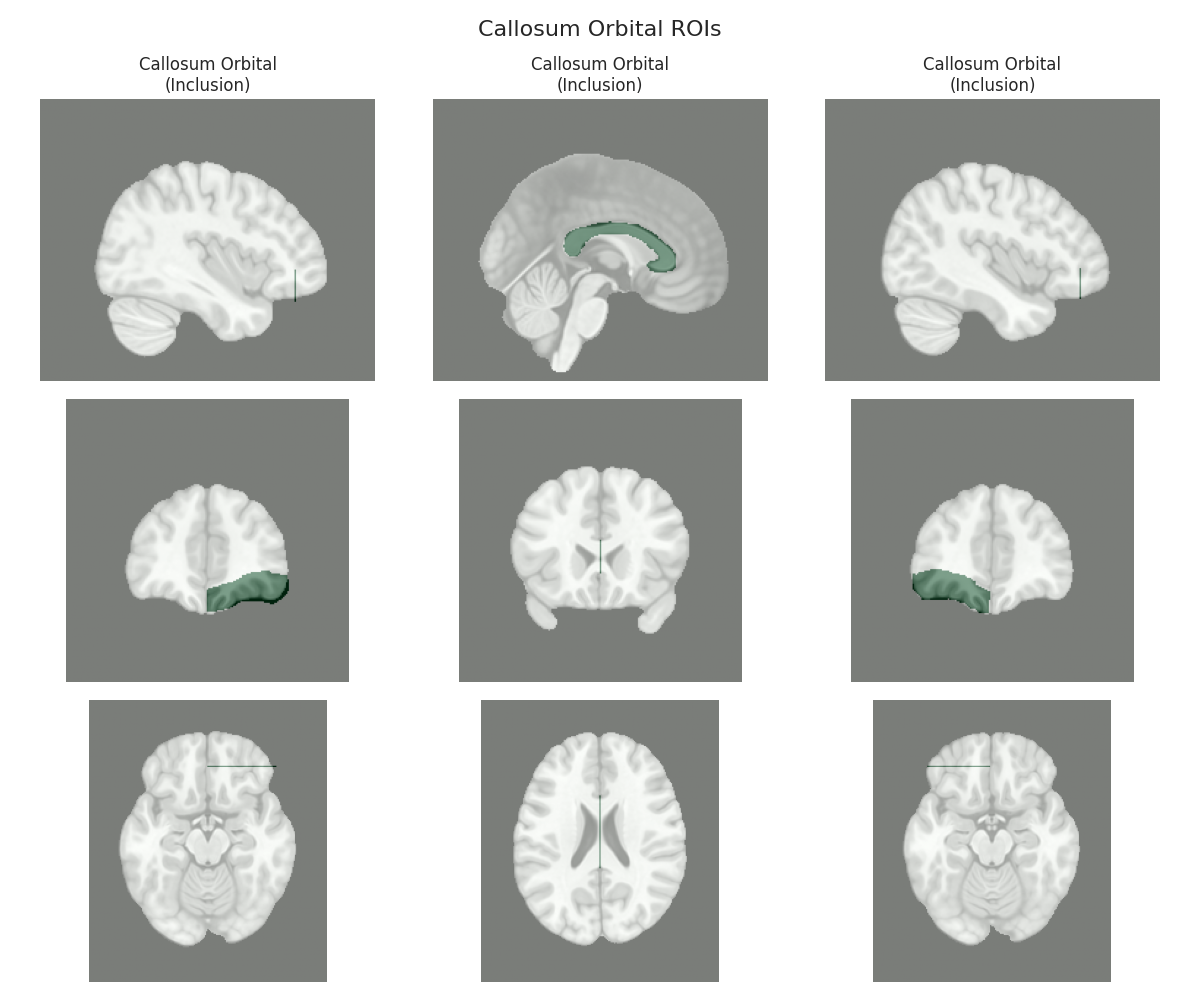

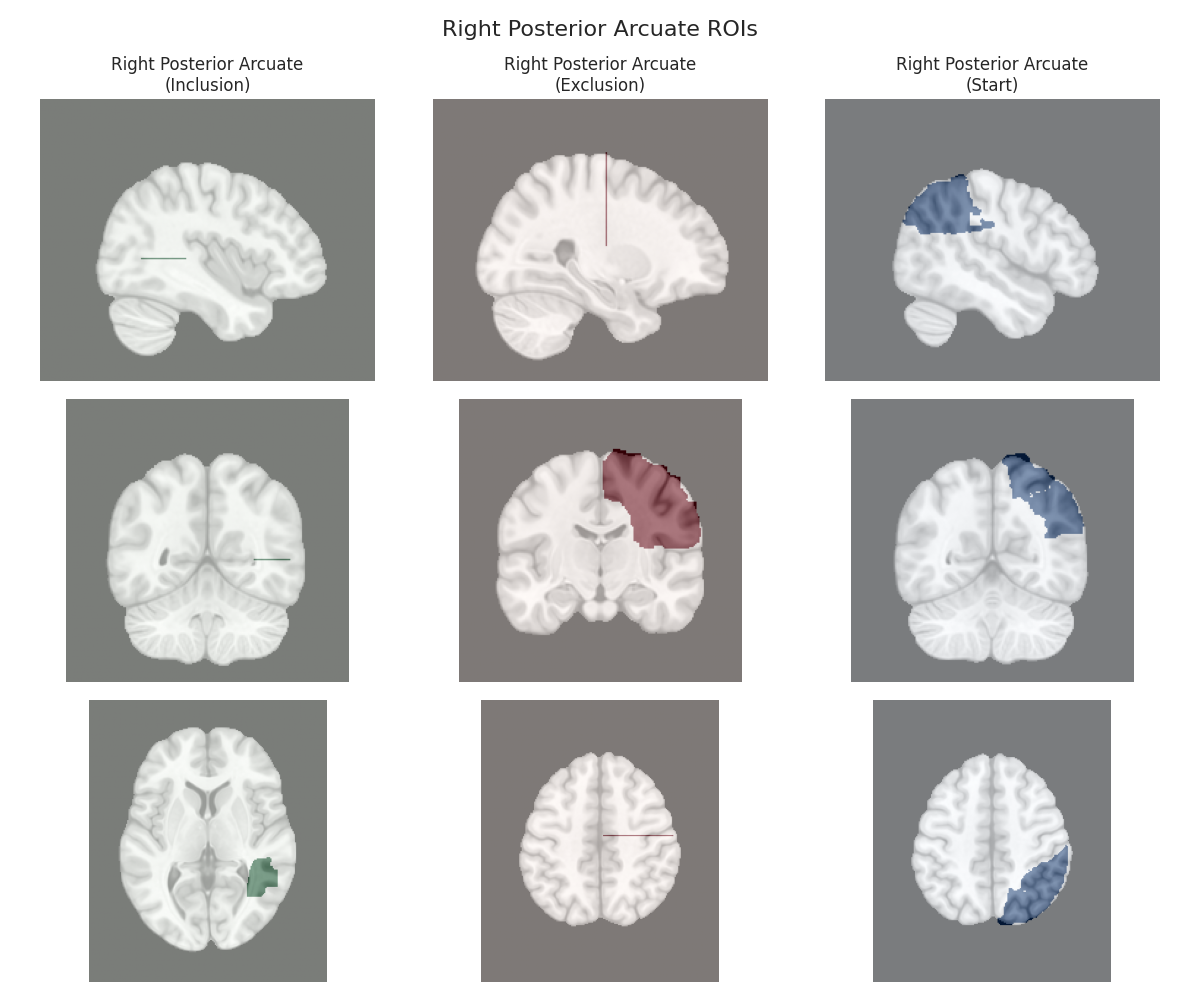

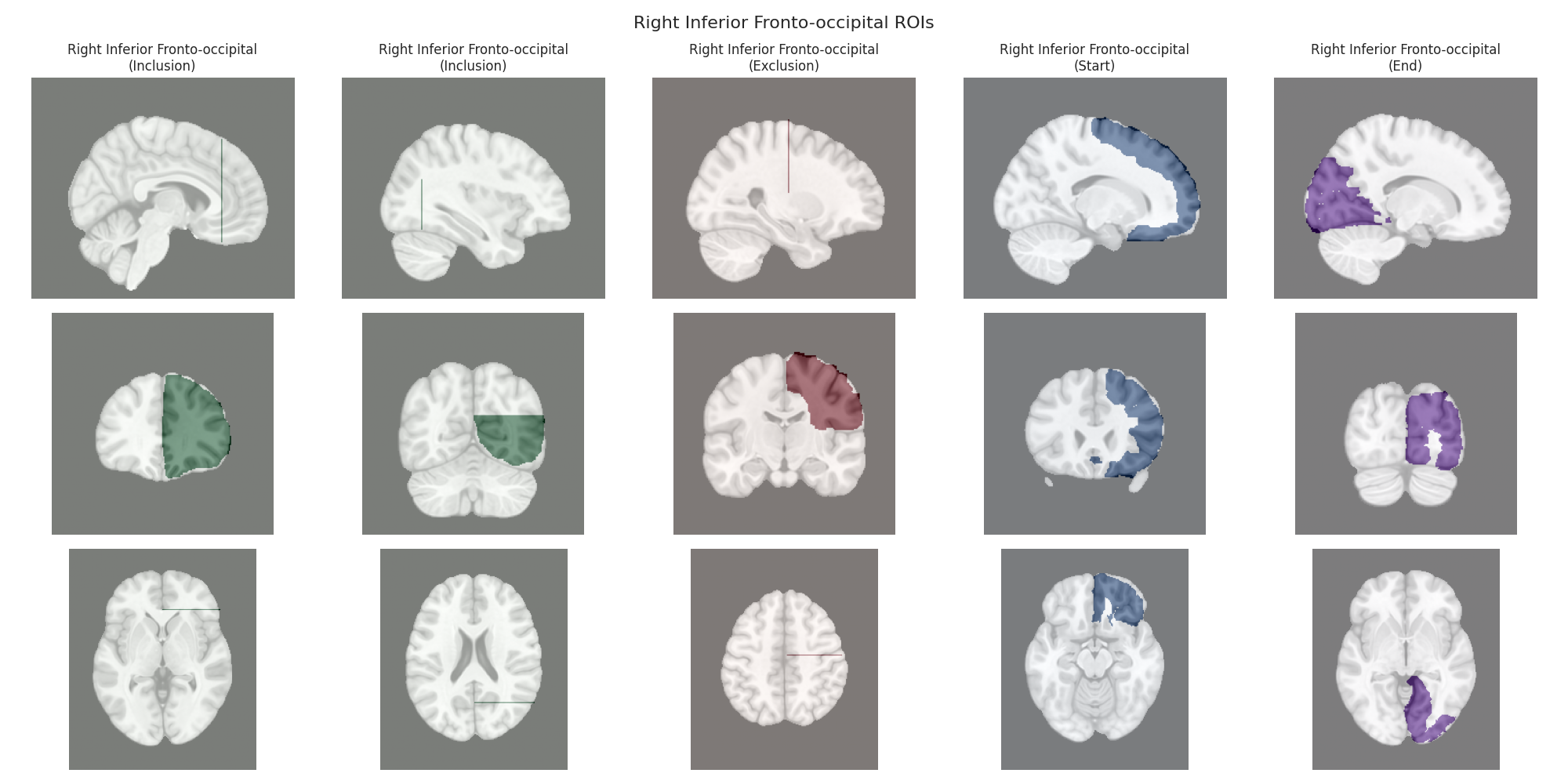

Create visualization for each tract

for bundle_name in templates.bundle_names:
    print(f"Visualizing ROIs for tract: {bundle_name}")
    figs = visualize_tract_rois(bundle_name)
    for ii, fig in enumerate(figs):
        fig.savefig(f"{bundle_name}_{ii}.png")
        plt.close(fig)

Visualizing ROIs for tract: Left Optic Radiation

Visualizing ROIs for tract: Right Optic Radiation

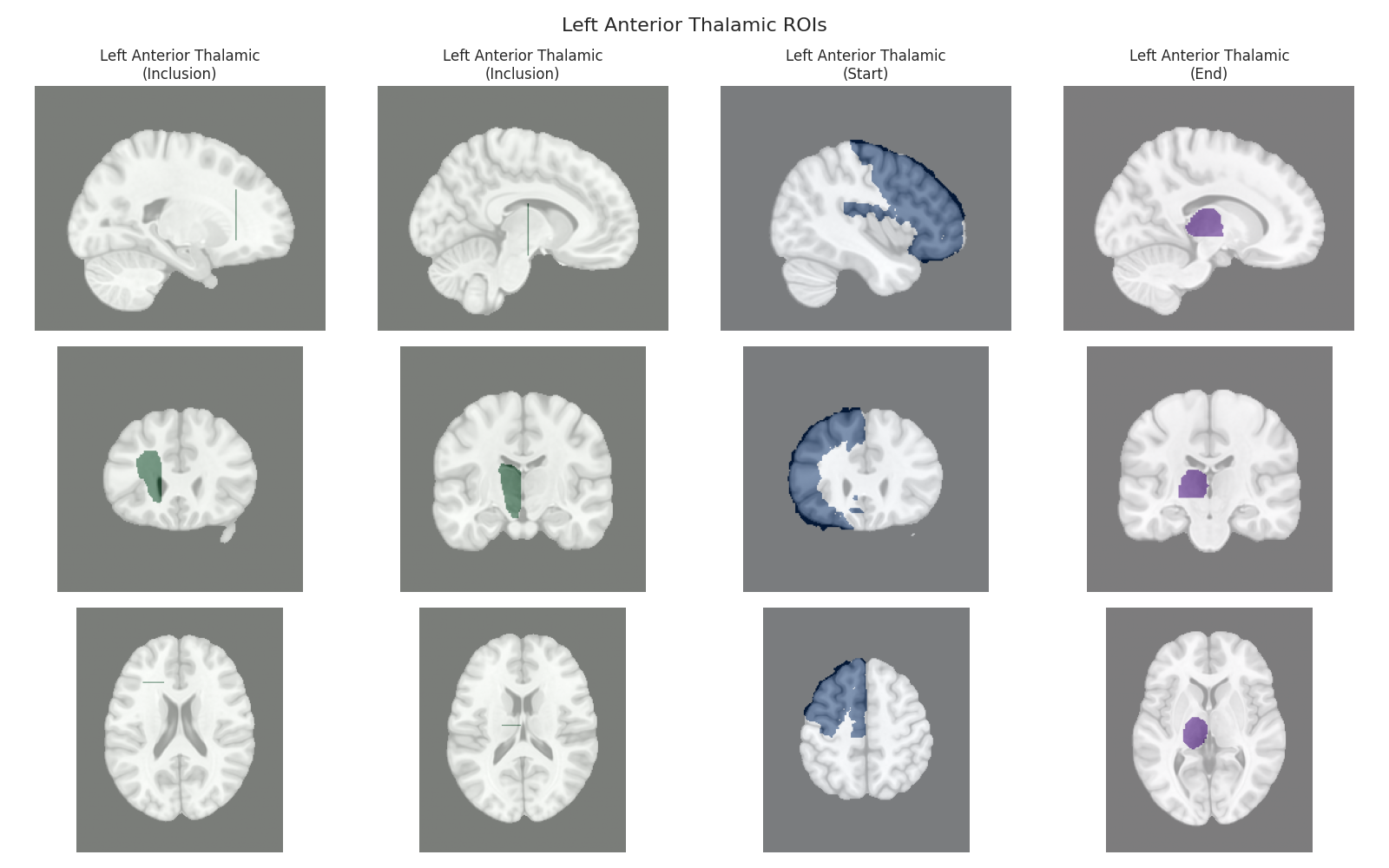

Visualizing ROIs for tract: Left Anterior Thalamic

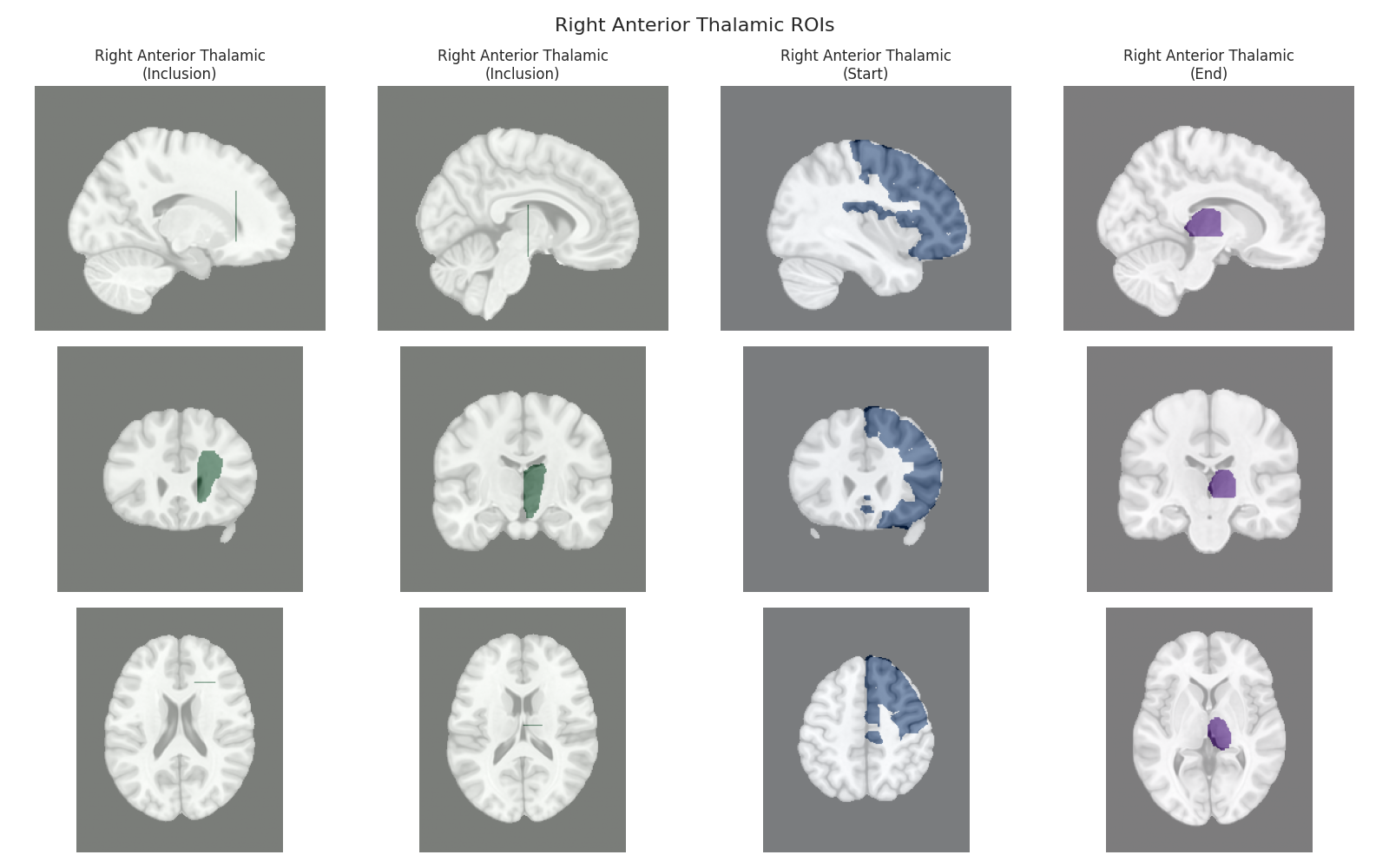

Visualizing ROIs for tract: Right Anterior Thalamic

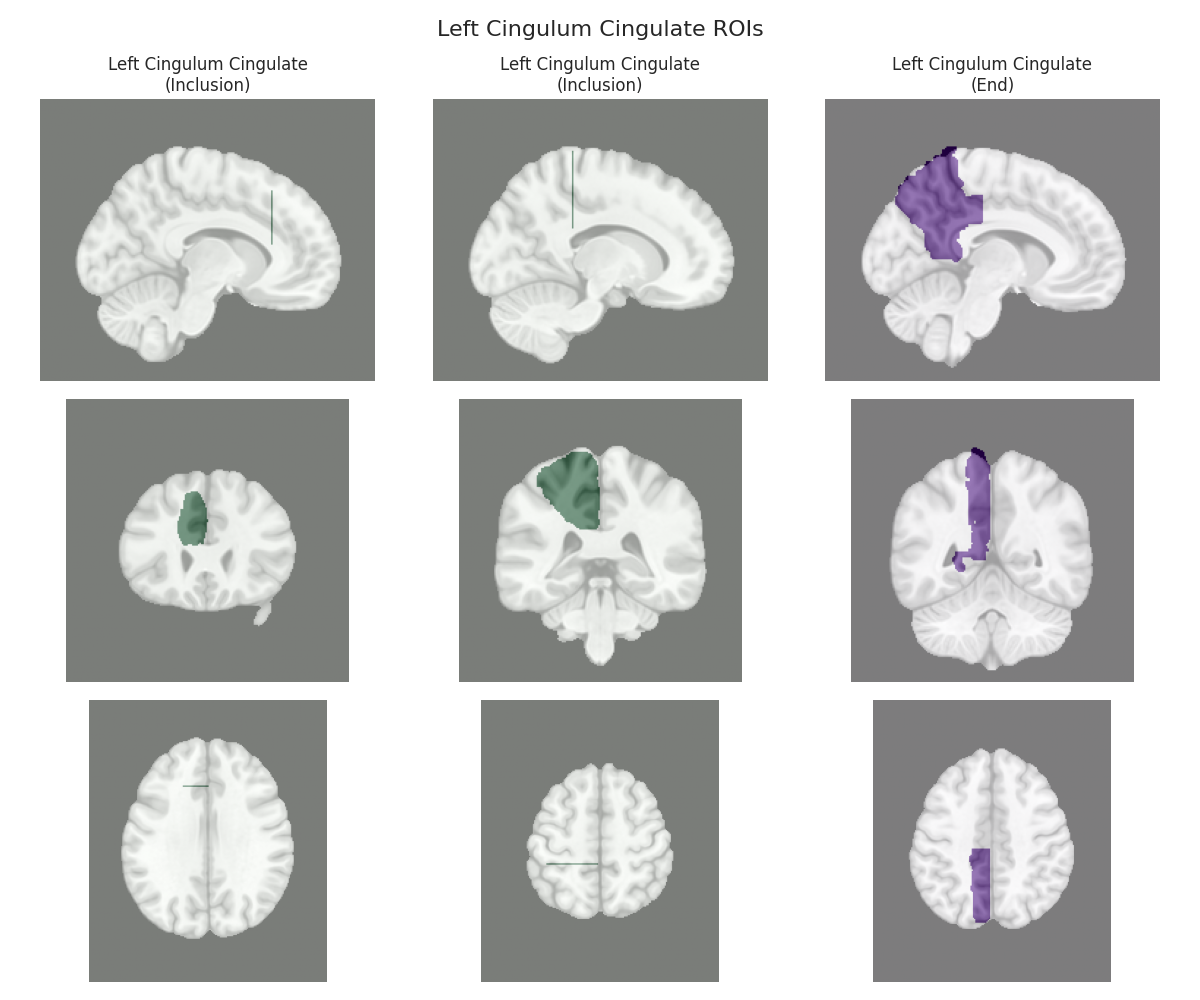

Visualizing ROIs for tract: Left Cingulum Cingulate

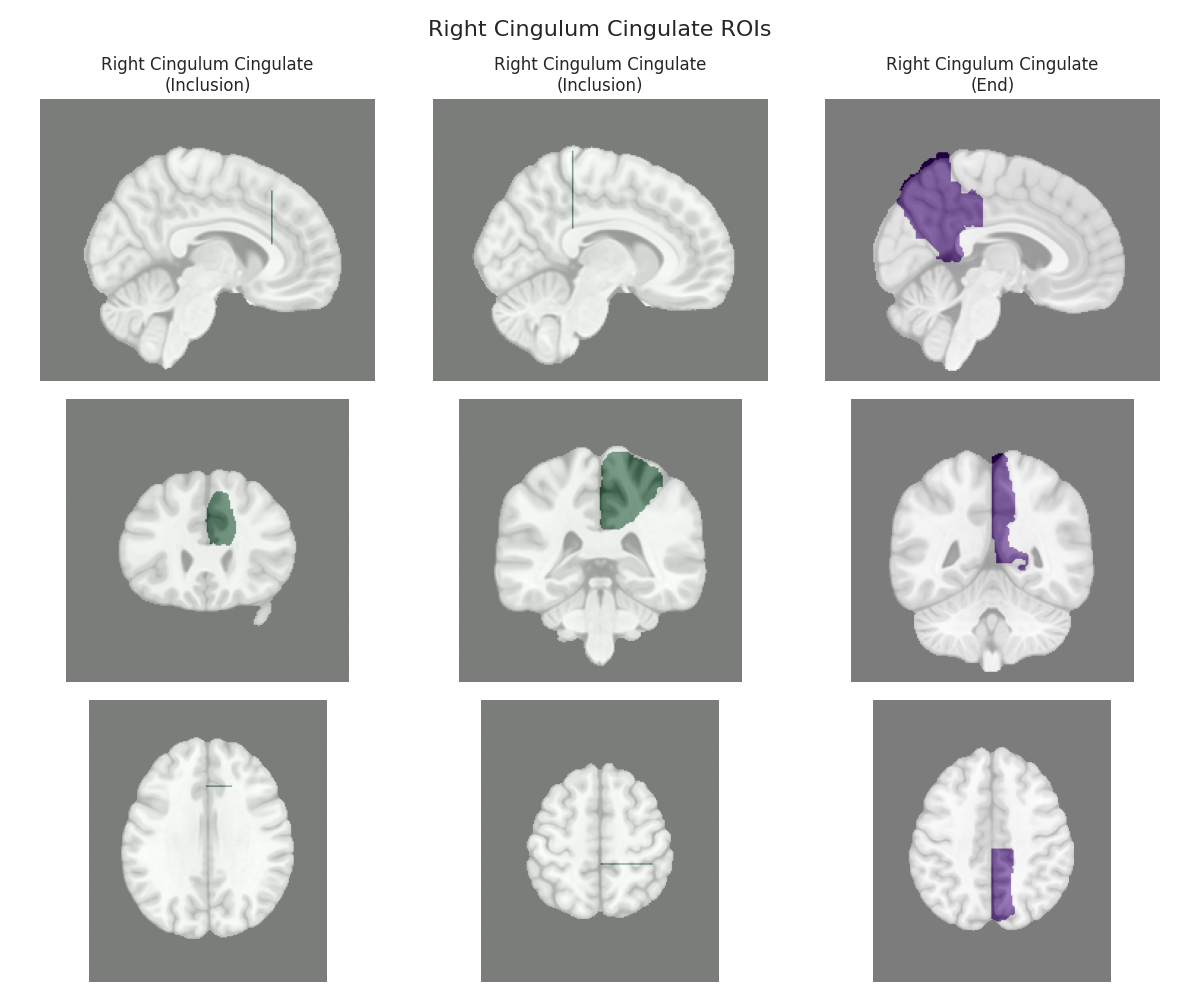

Visualizing ROIs for tract: Right Cingulum Cingulate

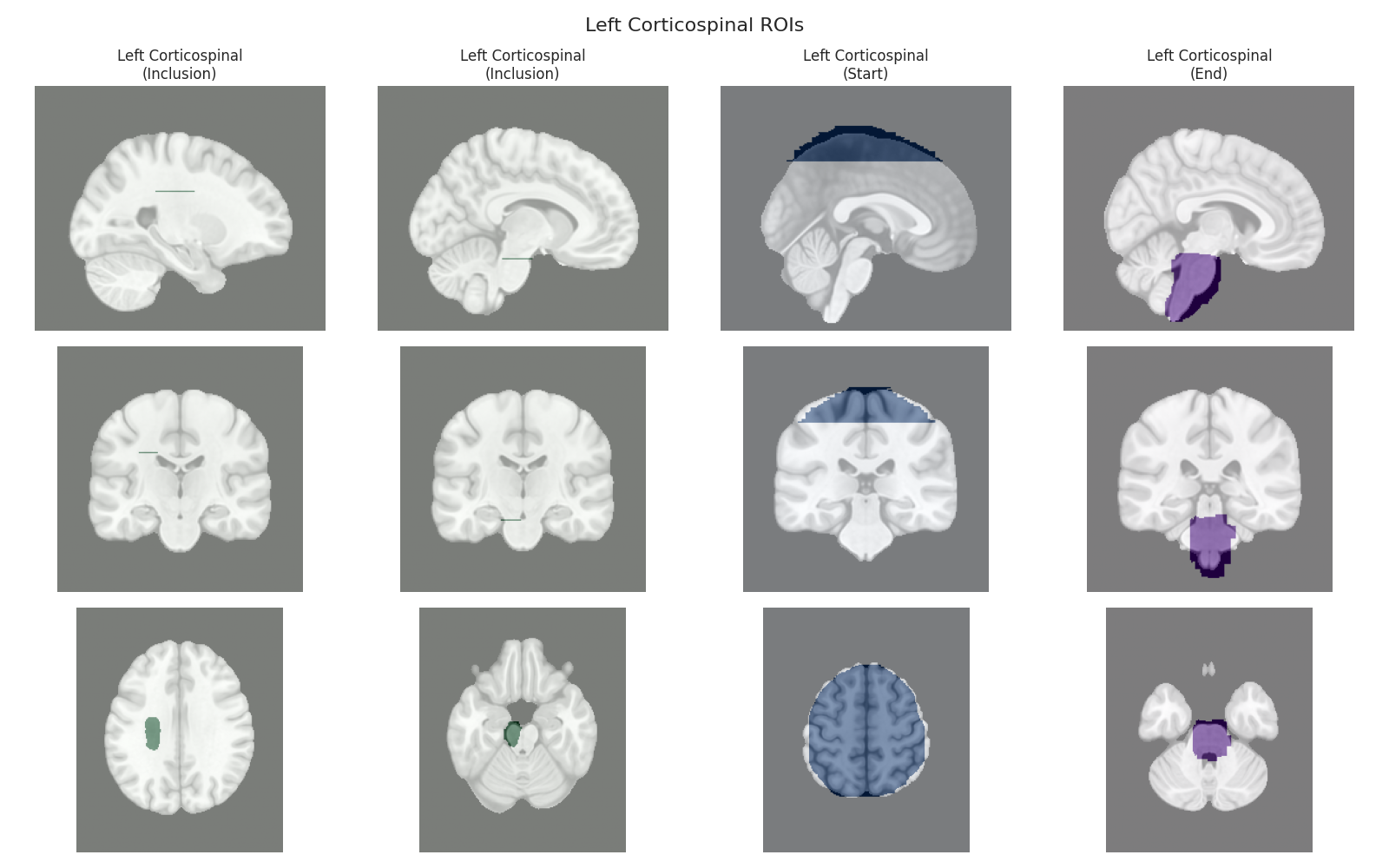

Visualizing ROIs for tract: Left Corticospinal

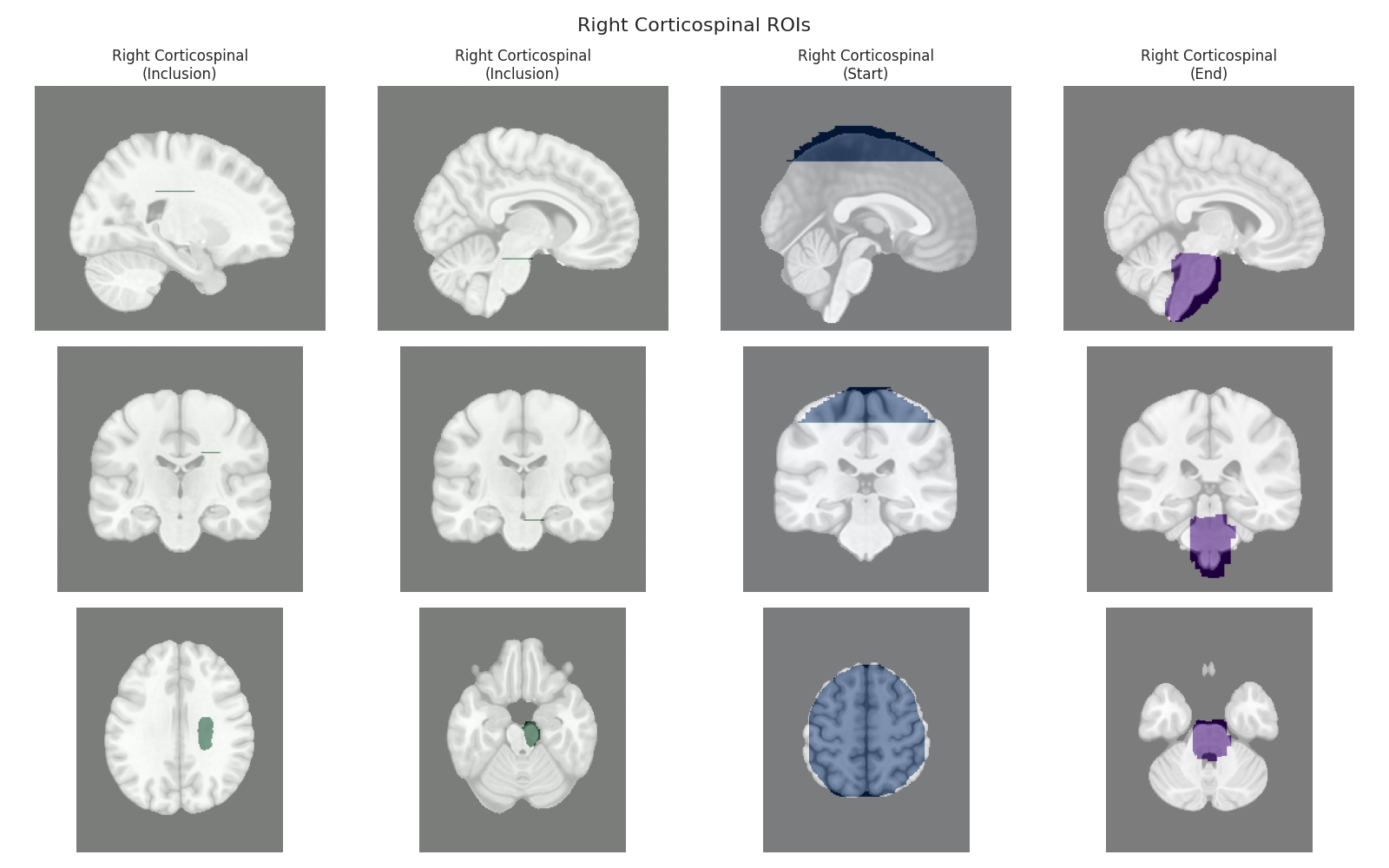

Visualizing ROIs for tract: Right Corticospinal

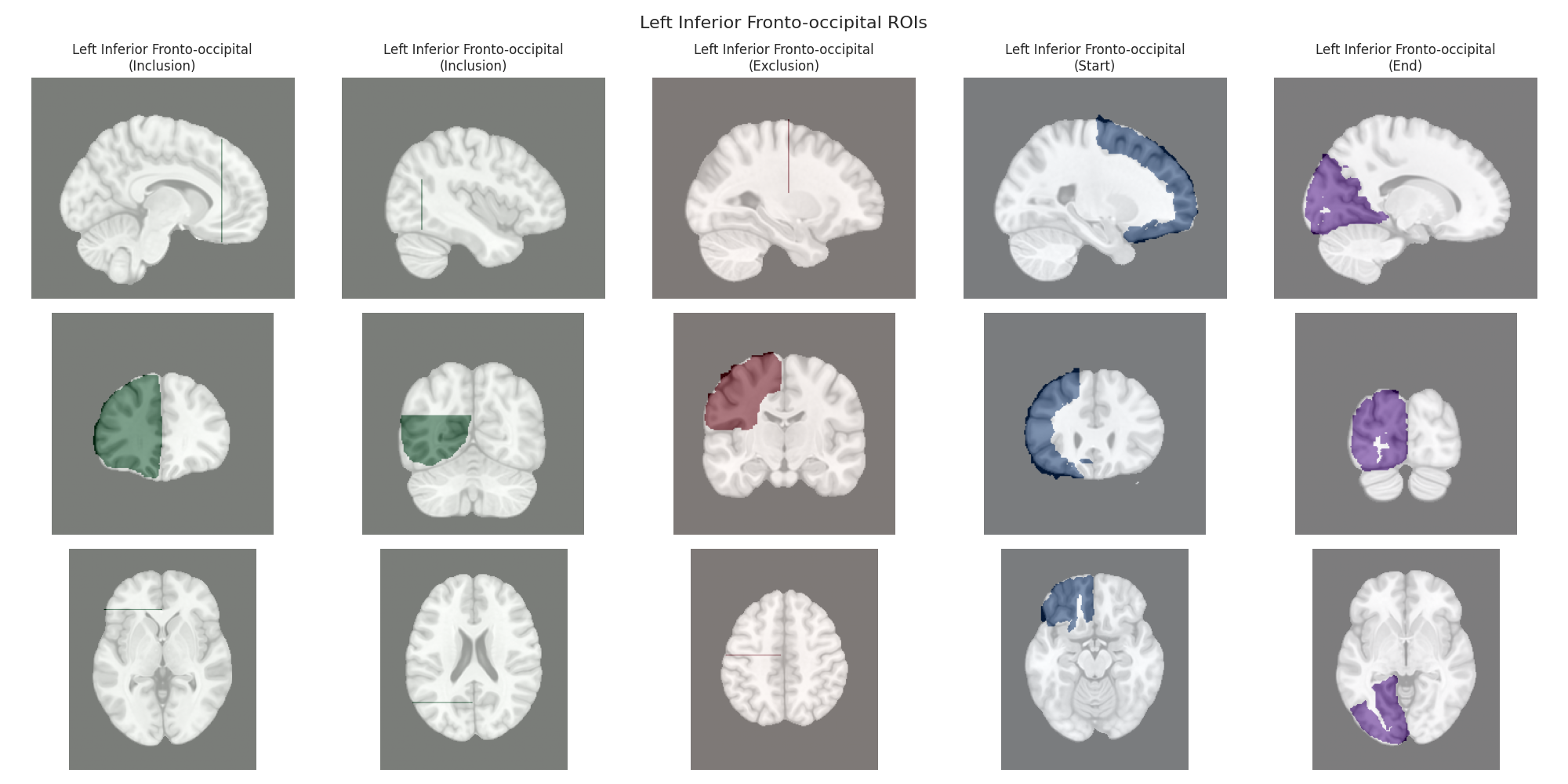

Visualizing ROIs for tract: Left Inferior Fronto-occipital

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
Cell In[3], line 3
for bundle_name in templates.bundle_names:
   print(f"Visualizing ROIs for tract: {bundle_name}")
----> 3     figs = visualize_tract_rois(bundle_name)
   for ii, fig in enumerate(figs):
       fig.savefig(f"{bundle_name}_{ii}.png")
       plt.close(fig)

Cell In[2], line 23, in visualize_tract_rois(tract_name)

   figures = []

   # Get the ROIs for this tract and hemisphere
---> 23     if tract_name not in templates:
       raise ValueError(f"Tract {tract_name} not found in templates.")
   bundle_info = templates[tract_name]


File <frozen _collections_abc>:818, in Mapping.__contains__(self, key)
'Could not get source, probably due dynamically evaluated source code.'

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/bundle_dict.py:1409, in BundleDict.__getitem__(self, key)
if not self.keep_in_memory:
   _item = self._dict[key].copy()
-> 1409     _res = self._cond_load_bundle(key, dry_run=True)
   if _res is not None:
       _item.update(_res)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/bundle_dict.py:1497, in BundleDict._cond_load_bundle(self, b_name, dry_run)
else:
   resample_to = self.resample_subject_to
-> 1497 return self.apply_to_rois(
   b_name,
   self._cond_load,
   resample_to,
   dry_run=dry_run,
   apply_to_recobundles=True,
)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/bundle_dict.py:1480, in BundleDict.apply_to_rois(self, b_name, *args, **kwargs)
def apply_to_rois(self, b_name, *args, **kwargs):
   """
   See: AFQ.api.bundle_dict.apply_to_roi_dict

   (...)   1478         bundle name of bundle whose ROIs will be transformed.
   """
-> 1480     return apply_to_roi_dict(self._dict[b_name], *args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/bundle_dict.py:1776, in apply_to_roi_dict(dict_, func, dry_run, apply_to_recobundles, apply_to_prob_map, *args, **kwargs)
           changed_rois = []
           for _roi in dict_[roi_type]:
-> 1776                 changed_rois.append(func(_roi, *args, **kwargs))
           return_vals[roi_type] = changed_rois
if apply_to_recobundles and "recobundles" in dict_:

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/bundle_dict.py:1352, in BundleDict._cond_load(self, roi_or_sl, resample_to)
if isinstance(roi_or_sl, str):
   if ".nii" in roi_or_sl:
-> 1352         return afd.read_resample_roi(roi_or_sl, resample_to=resample_to)
   else:
       return load_tractogram(
           roi_or_sl, "same", bbox_valid_check=False
       ).streamlines

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/data/fetch.py:655, in read_resample_roi(roi, resample_to, threshold)
   logger.info("Resampling skipped as affines already match.")
   return roi
--> 655 as_array = resample(
   roi.get_fdata(),
   resample_to,
   moving_affine=roi.affine,
   static_affine=resample_to.affine,
).get_fdata()
if threshold:
   as_array = (as_array > threshold).astype(int)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/align/_public.py:398, in resample(moving, static, moving_affine, static_affine, between_affine)
static, static_affine, moving, moving_affine, between_affine = (
   _handle_pipeline_inputs(
       moving,
   (...)    389     )
)
affine_map = AffineMap(
   between_affine,
   domain_grid_shape=static.shape,
   (...)    396     codomain_grid2world=moving_affine,
)
--> 398 resampled = affine_map.transform(moving)
return nib.Nifti1Image(resampled, static_affine)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/align/imaffine.py:432, in AffineMap.transform(self, image, interpolation, image_grid2world, sampling_grid_shape, sampling_grid2world, resample_only)
@warning_for_keywords()
def transform(
   self,
   (...)    391     resample_only=False,
):
   """Transform the input image from co-domain to domain space.

   By default, the transformed image is sampled at a grid defined by
   (...)    430
   """
--> 432     transformed = self._apply_transform(
       image,
       interpolation=interpolation,
       image_grid2world=image_grid2world,
       sampling_grid_shape=sampling_grid_shape,
       sampling_grid2world=sampling_grid2world,
       resample_only=resample_only,
       apply_inverse=False,
   )
   return np.array(transformed)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/align/imaffine.py:379, in AffineMap._apply_transform(self, image, interpolation, image_grid2world, sampling_grid_shape, sampling_grid2world, resample_only, apply_inverse)
if interpolation == "linear":
   image = image.astype(np.float64)
--> 379 transformed = _transform_method[(dim, interpolation)](image, shape, affine=comp)
return transformed

KeyboardInterrupt:
