Getting started with pyAFQ - GroupAFQ#

There are two ways to :doc:use pyAFQ </tutorials/index>: through the command line interface, and by writing Python code. This tutorial will walk you through the basics of the latter, using pyAFQ’s Python Application Programming Interface (API).

import os.path as op

import matplotlib.pyplot as plt
import nibabel as nib
import plotly
import pandas as pd

from AFQ.api.group import GroupAFQ
import AFQ.data.fetch as afd
import AFQ.viz.altair as ava
import AFQ.definitions.image as afm

2026-05-19 01:03:38,878	INFO util.py:154 -- Missing packages: ['ipywidgets']. Run `pip install -U ipywidgets`, then restart the notebook server for rich notebook output.

Example data#

pyAFQ can be called using GroupAFQ to handle data organized in a BIDS compliant directory. If this is not the case, refer to the Participant AFQ example. To get users started with this tutorial, we will download some example data and organize it in a BIDS compliant way (for more details on how BIDS is used in pyAFQ, refer to :doc:plot_006_bids_layout).

The following call downloads a a single subject’s data from the Healthy Brain Network Processed Open Diffusion Derivatives dataset (HBN-POD2) [1], [2] and organizes it in BIDS in the user’s home directory under::

~/AFQ_data/HBN/

The data is also placed in a derivatives directory, signifying that it has already undergone the required preprocessing necessary for pyAFQ to run.

The clear_previous_afq is used to remove any previous runs of the afq object stored in the ~/AFQ_data/HBN/ BIDS directory. Set it to None if you want to use the results of previous runs.

bids_path = afd.fetch_hbn_preproc(
    ["NDARAA948VFH"],
    clear_previous_afq="all")[1]

Set tractography parameters (optional)#

We make create a tracking_params variable, which we will pass to the GroupAFQ object which specifies that we want 100,000 seeds randomly distributed in the white matter. We only do this to make this example faster and consume less space; normally, we use more seeds.

tracking_params = dict(n_seeds=1e5,
                       random_seeds=True,
                       rng_seed=2025,
                       trx=True)

Define PVE images (optional)#

To improve segmentation and tractography results, we can provide partial volume estimate (PVE) images for the cerebrospinal fluid (CSF), gray matter (GM), and white matter (WM). Here, we define these images using the AFQ.definitions.image.PVEImages class, which takes as input three AFQ.definitions.image.ImageFile objects, one for each tissue type. One can also provide a single PVE image with all three tissue types using the AFQ.definitions.image.PVEImage class. Finally, by default, if no PVE images are provided, pyAFQ will use SynthSeg2 to compute these images.

pve = afm.PVEImages(
    afm.ImageFile(
        suffix="probseg", filters={"scope": "qsiprep", "label": "CSF"}),
    afm.ImageFile(
        suffix="probseg", filters={"scope": "qsiprep", "label": "GM"}),
    afm.ImageFile(
        suffix="probseg", filters={"scope": "qsiprep", "label": "WM"}))

Brain Mask Definition (optional)#

By default, pyAFQ will compute a brain mask from the T1. However, this requires onnxruntime to be installed. If you do not have onnxruntime installed, or if you want to use a different brain mask, you can specify it here.

brain_mask_definition = afm.ImageFile(
    suffix="mask", filters={"desc": "brain", "scope": "qsiprep"})

Initialize a GroupAFQ object:#

Creates a GroupAFQ object, that encapsulates tractometry. This object can be used to manage the entire :doc:/explanations/index, including:

Tractography
Registration
Segmentation
Cleaning
Profiling
Visualization

This will also create an output folder for the corresponding AFQ derivatives in the AFQ data directory: AFQ_data/HBN/derivatives/afq/

To initialize this object we will pass in the path location to our BIDS compliant data, the name of the preprocessing pipeline we want to use, the name of the t1 preprocessing pipeline we want to use (in this case, its the same, qsiprep [3]), the participant labels we want to process (in this case, just a single subject), the PVE images we defined above, and the tracking parameters we defined above.

myafq = GroupAFQ(
    bids_path=op.join(afd.afq_home, 'HBN'),
    dwi_preproc_pipeline='qsiprep',
    t1_preproc_pipeline='qsiprep',
    participant_labels=['NDARAA948VFH'],
    pve=pve,
    brain_mask_definition=brain_mask_definition,
    tracking_params=tracking_params)

INFO:bidsschematools:No schema path specified, defaulting to the bundled schema, `/opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/bidsschematools/data/schema.json`.

INFO:AFQ:Using the following files for subject NDARAA948VFH and session HBNsiteRU:

INFO:AFQ:  DWI: /home/runner/AFQ_data/HBN/derivatives/qsiprep/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_space-T1w_desc-preproc_dwi.nii.gz

INFO:AFQ:  BVAL: /home/runner/AFQ_data/HBN/derivatives/qsiprep/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_space-T1w_desc-preproc_dwi.bval

INFO:AFQ:  BVEC: /home/runner/AFQ_data/HBN/derivatives/qsiprep/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_space-T1w_desc-preproc_dwi.bvec

INFO:AFQ:  T1: /home/runner/AFQ_data/HBN/derivatives/qsiprep/sub-NDARAA948VFH/anat/sub-NDARAA948VFH_desc-preproc_T1w.nii.gz

Calculating DKI FA (Diffusion Kurtosis Imaging Fractional Anisotropy)#

The GroupAFQ object has a method called export, which allows the user to calculate various derived quantities from the data.

For example, FA can be computed using the DKI model, by explicitly calling myafq.export("dki_fa"). This triggers the computation of DKI parameters for all subjects in the dataset, and stores the results in the AFQ derivatives directory. In addition, it calculates the FA from these parameters and stores it in a different file in the same directory.

Note

The AFQ API computes quantities lazily. This means that DKI parameters are not computed until they are required. This means that the first line below is the one that requires time.

The result of the call to export is a dictionary, with the subject IDs as keys, and the filenames of the corresponding files as values. This means that to extract the filename corresponding to the FA of the first subject, we can do:

FA_fname = myafq.export("dki_fa", collapse=False)["NDARAA948VFH"]["HBNsiteRU"]

# We will then use `nibabel` to load the deriviative file and retrieve the
# data array.

FA_img = nib.load(FA_fname)
FA = FA_img.get_fdata()

INFO:AFQ:Calculating _b0ref.nii.gz...

INFO:AFQ:_b0ref.nii.gz completed. Saving to /home/runner/AFQ_data/HBN/derivatives/afq/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_b0ref.nii.gz

INFO:AFQ:Calculating _desc-brain_mask.nii.gz...

INFO:AFQ:Calculating _desc-T1w_mask.nii.gz...

INFO:AFQ:_desc-T1w_mask.nii.gz completed. Saving to /home/runner/AFQ_data/HBN/derivatives/afq/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_desc-T1w_mask.nii.gz

INFO:AFQ:_desc-brain_mask.nii.gz completed. Saving to /home/runner/AFQ_data/HBN/derivatives/afq/sub-NDARAA948VFH/ses-HBNsiteRU/dwi/sub-NDARAA948VFH_ses-HBNsiteRU_acq-64dir_desc-brain_mask.nii.gz

INFO:AFQ:Calculating _model-kurtosis_param-diffusivity_dwimap.nii.gz, _model-kurtosis_param-s0_dwimap.nii.gz...

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
Cell In[7], line 1
----> 1 FA_fname = myafq.export("dki_fa", collapse=False)["NDARAA948VFH"]["HBNsiteRU"]

# We will then use `nibabel` to load the deriviative file and retrieve the
# data array.

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/group.py:647, in GroupAFQ.export(self, attr_name, collapse)
       to_calc_list.append((subject, session))
   else:
--> 647         results[subject][session] = val_from_plan(plans_dict, attr_name)
# if some need to be calculated, do those in parallel
if to_calc_list:

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/api/utils.py:146, in val_from_plan(plan, attr_name)
def val_from_plan(plan, attr_name):
   try:
--> 146         return plan[attr_name]
   except Exception as err:
       current_err = err

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/pcollections/_lazy.py:381, in ldict.__getitem__(self, key)
v = pdict.__getitem__(self, key)
if isinstance(v, lazy):
--> 381     v = v()
return v

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/pcollections/_lazy.py:143, in lazy.__call__(self)
   val = self.value
else:
--> 143     val = part()
   # We've successfully calculated the value; set the members
   # appropriately.
   object.__setattr__(self, 'value', val)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:855, in plan._source_lookup(inputtup, calctup, src)
   (cidx, oidx) = src
   lazycalc = calctup[cidx]
--> 855     val = lazycalc()[oidx]
else:
   val = inputtup[src]()

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/pcollections/_lazy.py:143, in lazy.__call__(self)
   val = self.value
else:
--> 143     val = part()
   # We've successfully calculated the value; set the members
   # appropriately.
   object.__setattr__(self, 'value', val)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:884, in plan._make_calctup.<locals>.<lambda>(c, args)
# We take advantage of Python's weak closures here:
calctup = ()
calctup = tuple(
--> 884     lazy(lambda c,args: f(inputtup, calctup, c, args), c, args)
   for (c,args) in zip(calcdata.calcs, calcdata.args))
return calctup

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:868, in plan._call_calc(inputtup, calctup, c, args)
kwargs = {}
c = to_calc(c)
--> 868 for (p,arg) in zip(c.signature.parameters.values(), argvals):
   if p.kind == p.POSITIONAL_ONLY:
       args.append[arg]

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:855, in plan._source_lookup(inputtup, calctup, src)
   (cidx, oidx) = src
   lazycalc = calctup[cidx]
--> 855     val = lazycalc()[oidx]
else:
   val = inputtup[src]()

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/pcollections/_lazy.py:143, in lazy.__call__(self)
   val = self.value
else:
--> 143     val = part()
   # We've successfully calculated the value; set the members
   # appropriately.
   object.__setattr__(self, 'value', val)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:884, in plan._make_calctup.<locals>.<lambda>(c, args)
# We take advantage of Python's weak closures here:
calctup = ()
calctup = tuple(
--> 884     lazy(lambda c,args: f(inputtup, calctup, c, args), c, args)
   for (c,args) in zip(calcdata.calcs, calcdata.args))
return calctup

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:873, in plan._call_calc(inputtup, calctup, c, args)
   else:
       kwargs[p.name] = arg
--> 873 r = c.eager_call(*args, **kwargs)
if is_amap(r):
   return tuple(map(r.__getitem__, c.outputs))

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/immlib/workflow/_core.py:448, in calc.eager_call(self, *args, **kwargs)
"""Eagerly calls the given calculation using the arguments.

``c.eager_call(...)`` returns the result of calling the calculation
   (...)    444 calc.eager_mapcall, calc.lazy_call, calc.lazy_mapcall
"""
# Now we just pass these arguments along (the function itself has been
# given the caching code via decorators already).
--> 448 res = self.function(*args, **kwargs)
# Now interpret the result.
outs = self.outputs

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/tasks/decorators.py:104, in as_file.<locals>._as_file.<locals>.wrapper_as_file(*args, **kwargs)
logger.info(f"Calculating {calculation_name}...")
try:
--> 104     results = func(*args, **kwargs)
   if len(output_specs) == 1:
       results = [results]

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/tasks/decorators.py:228, in as_img.<locals>.wrapper_as_img(*args, **kwargs)
   dwi_affine = data_imap["dwi_affine"]
start_time = time()
--> 228 results = func(*args, **kwargs)
elapsed = time() - start_time
is_single_output = isinstance(results[0], np.ndarray)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/tasks/data.py:318, in dki_params(brain_mask, gtab, data, citations)
   raise ValueError(
       (
           "The DKI model requires at least 2 non-zero b-values, "
   (...)    315         )
   )
mask = nib.load(brain_mask).get_fdata()
--> 318 dkf = dki_fit_model(gtab, data, mask=mask, return_S0_hat=True)
meta = dict(
   Description=(
       "Diffusion Coefficient, encoded as a kurtosis tensor representation"
   (...)    330     ),
)
meta_s0 = dict(
   Description="Estimated signal intensity with no diffusion weighting, ie. S0",
   Model=dict(
   (...)    341     ),
)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/AFQ/models/dki.py:16, in _fit(gtab, data, mask, return_S0_hat)
def _fit(gtab, data, mask=None, return_S0_hat=False):
   dkimodel = dki.DiffusionKurtosisModel(gtab, return_S0_hat=return_S0_hat)
---> 16     return dkimodel.fit(
       data,
       mask=mask,
   )

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/reconst/dki.py:1896, in DiffusionKurtosisModel.fit(self, data, mask)
data_thres = np.maximum(data, self.min_signal)
if self.is_multi_method and not self.is_iter_method:
-> 1896     fit_result, extra = self.multi_fit(
       data_thres, mask=mask, weights=self.weights, **self.kwargs
   )
   if extra is not None:
       self.extra = extra

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/reconst/multi_voxel.py:282, in multi_voxel_fit.<locals>.decorator.<locals>.new_fit(self, data, mask, **kwargs)
if weights_is_array:
   kwargs["weights"] = weights[ijk]
--> 282 svf = single_voxel_fit(self, data[ijk], **kwargs)
# Not all fit methods return extra, handle this here
if isinstance(svf, tuple):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/reconst/dki.py:1986, in DiffusionKurtosisModel.multi_fit(self, data, mask, **kwargs)
"""Convenience function for fitting multiple voxels."""
extra_args = (
   {}
   if not self.convexity_constraint
   (...)   1983     }
)
-> 1986 params, extra = self.fit_method(
   self.design_matrix,
   data,
   self.inverse_design_matrix,
   return_S0_hat=self.return_S0_hat,
   min_diffusivity=self.min_diffusivity,
   **extra_args,
   **kwargs,
)
S0_params = None
if self.return_S0_hat:

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/reconst/dki.py:2793, in ls_fit_dki(design_matrix, data, inverse_design_matrix, return_S0_hat, weights, min_diffusivity, return_lower_triangular, return_leverages)
   return result, leverages
# Write output
-> 2793 dki_params = params_to_dki_params(result, min_diffusivity=min_diffusivity)
if return_S0_hat:
   return (dki_params[..., 0:-1], dki_params[..., -1]), leverages

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:201, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
# Check if the current version is within the warning range
if (
   version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
--> 201     return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are
elif version.parse(current_version) > version.parse(until_version):

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:192, in warning_for_keywords.<locals>.decorator.<locals>.wrapper.<locals>.convert_positional_to_keyword(func, args, kwargs)
       warnings.warn(
           f"Pass {positionally_passed_kwonly_args} as keyword args. "
           f"From version {until_version} passing these as positional "
   (...)    187             stacklevel=3,
       )
   return func(*positional_args, **corrected_kwargs)
--> 192 return func(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/reconst/dki.py:2677, in params_to_dki_params(result, min_diffusivity)
# Extracting the diffusion tensor parameters from solution
DT_elements = result[:6]
-> 2677 evals, evecs = decompose_tensor(
   from_lower_triangular(DT_elements), min_diffusivity=min_diffusivity
)
# Extracting kurtosis tensor parameters from solution
MD_square = evals.mean(0) ** 2

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/dipy/testing/decorators.py:196, in warning_for_keywords.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
   return func(*args, **kwargs)
# Check if the current version is within the warning range
if (
--> 196     version.parse(from_version)
   <= version.parse(current_version)
   <= version.parse(until_version)
):
   # Convert positional to keyword arguments and issue a warning
   return convert_positional_to_keyword(func, args, kwargs)
# If the version is greater than the until_version,
# pass the arguments as they are

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/packaging/version.py:122, in parse(version)
def parse(version: str) -> Version:
   """Parse the given version string.

   This is identical to the :class:`Version` constructor.
   (...)    120     :raises InvalidVersion: When the version string is not a valid version.
   """
--> 122     return Version(version)

File /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/packaging/version.py:414, in Version.__init__(self, version)
def __init__(self, version: str) -> None:
   """Initialize a Version object.

   :param version:
   (...)    412         exception will be raised.
   """
--> 414     if _SIMPLE_VERSION_INDICATORS.issuperset(version):
       try:
           self._release = tuple(map(int, version.split(".")))

KeyboardInterrupt:

Visualize the result with Matplotlib#

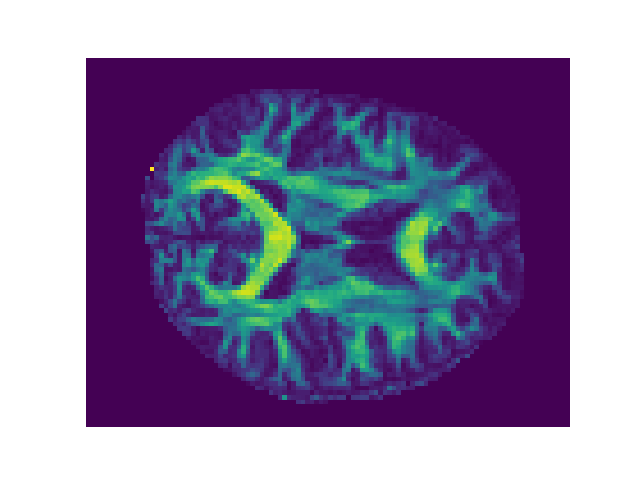

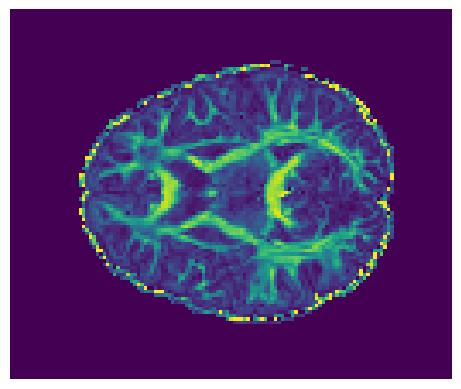

At this point FA is an array, and we can use standard Python tools to visualize it or perform additional computations with it.

In this case we are going to take an axial slice halfway through the FA data array and plot using a sequential color map.

Note

The data array is structured as a xyz coordinate system.

fig, ax = plt.subplots(1)
ax.matshow(FA[:, :, FA.shape[-1] // 2], cmap='viridis')
ax.axis("off")

Recognizing the bundles and calculating tract profiles:#

Typically, users of pyAFQ are interested in calculating not only an overall map of the FA, but also the major white matter pathways (or bundles) and tract profiles of tissue properties along their length. To trigger the pyAFQ pipeline that calculates the profiles, users can call the export('profiles') method:

Note

Running the code below triggers the full pipeline of operations leading to the computation of the tract profiles. Therefore, it takes a little while to run (about 40 minutes, typically).

myafq.export('profiles')

Visualizing the bundles and calculating tract profiles:#

The pyAFQ API provides several ways to visualize bundles and profiles.

First, we will run a function that exports an html file that contains an interactive visualization of the bundles that are segmented.

Note

By default we resample a 100 points within a bundle, however to reduce processing time we will only resample 50 points.

Once it is done running, it should pop a browser window open and let you interact with the bundles.

Note

You can hide or show a bundle by clicking the legend, or select a single bundle by double clicking the legend. The interactive visualization will also all you to pan, zoom, and rotate.

bundle_html = myafq.export("all_bundles_figure", collapse=False)
plotly.io.show(bundle_html["NDARAA948VFH"]["HBNsiteRU"][0])

We can also visualize the tract profiles in all of the bundles. These plots show both FA (left) and MD (right) laid out anatomically. To make this plot, it is required that you install with pip install pyAFQ[plot] so that you have the necessary dependencies.

fig_files = myafq.export("tract_profile_plots", collapse=False)[
    "NDARAA948VFH"]["HBNsiteRU"]

.. figure:: {{ fig_files[0] }}

We can even use altair to visualize the tract profiles in all of the bundles. We provide a more customizable interface for visualizing the tract profiles using altair. Again, to make this plot, it is required that you install with pip install pyAFQ[plot] so that you have the necessary dependencies.

profiles_df = myafq.combine_profiles()
altair_df = ava.combined_profiles_df_to_altair_df(
    profiles_df,
    tissue_properties=['dki_fa', 'dki_md'])
altair_chart = ava.altair_df_to_chart(altair_df)
altair_chart.display()

Exporting citations#

Finally, we can export the citations for the some of methods used in this analysis. These are not guaranteed to be comprehensive, but they should be a good starting point.

myafq.export("citations")

We can check the number of streamlines per bundle, to make sure every bundle is found with a reasonable amount of streamlines.

bundle_counts = pd.read_csv(
    myafq.export("sl_counts", collapse=False)[
        "NDARAA948VFH"]["HBNsiteRU"], index_col=[0])
for ind in bundle_counts.index:
    if ind == "Total Recognized":
        threshold = 2500
    else:
        threshold = 20
    if bundle_counts["n_streamlines"][ind] < threshold:
        raise ValueError((
            "Small number of streamlines found "
            f"for bundle(s):\n{bundle_counts}"))

Alternative way to initialize GroupAFQ when using QSIPrep data#

As a final note, if you are using QSIPrep preprocessed data, you can also initialize the GroupAFQ object using the from_qsiprep class method. This method will automatically set the appropriate BIDS filters to find the preprocessed DWI data. Additionally, it will find and use the brain masks and PVE images that QSIPrep generates. Outside of BIDS filters, the arguments are the same as those used when initializing the GroupAFQ object directly.

myafq = GroupAFQ.from_qsiprep(
    qsi_dir=op.join(afd.afq_home, 'HBN'),
    participant_labels=['NDARAA948VFH'],
    tracking_params=tracking_params)

References#

.. [1] Alexander LM, Escalera J, Ai L, et al. An open resource for transdiagnostic research in pediatric mental health and learning disorders. Sci Data. 2017;4:170181.

.. [2] Richie-Halford A, Cieslak M, Ai L, et al. An analysis-ready and quality controlled resource for pediatric brain white-matter research. Scientific Data. 2022;9(1):1-27.

.. [3] Cieslak M, Cook PA, He X, et al. QSIPrep: an integrative platform for preprocessing and reconstructing diffusion MRI data. Nat Methods. 2021;18(7):775-778.
